Tightening Torque Specifications
TIGHTENING TORQUE SPECIFICATIONS
| Fastening part | Tightening torque | ||
|---|---|---|---|
| N.m | kgf-m | lb-ft | |
| Exhaust manifold bolt | Tighten 50 N.m (5.0 kgf-m, 36.5 lb-ft) by the specified procedure | ||
| Exhaust manifold nut | Tighten 50 N.m (5.0 kgf-m, 36.5 lb-ft) by the specified procedure | ||
NOTE:
The specified tightening torque is also described in the following.

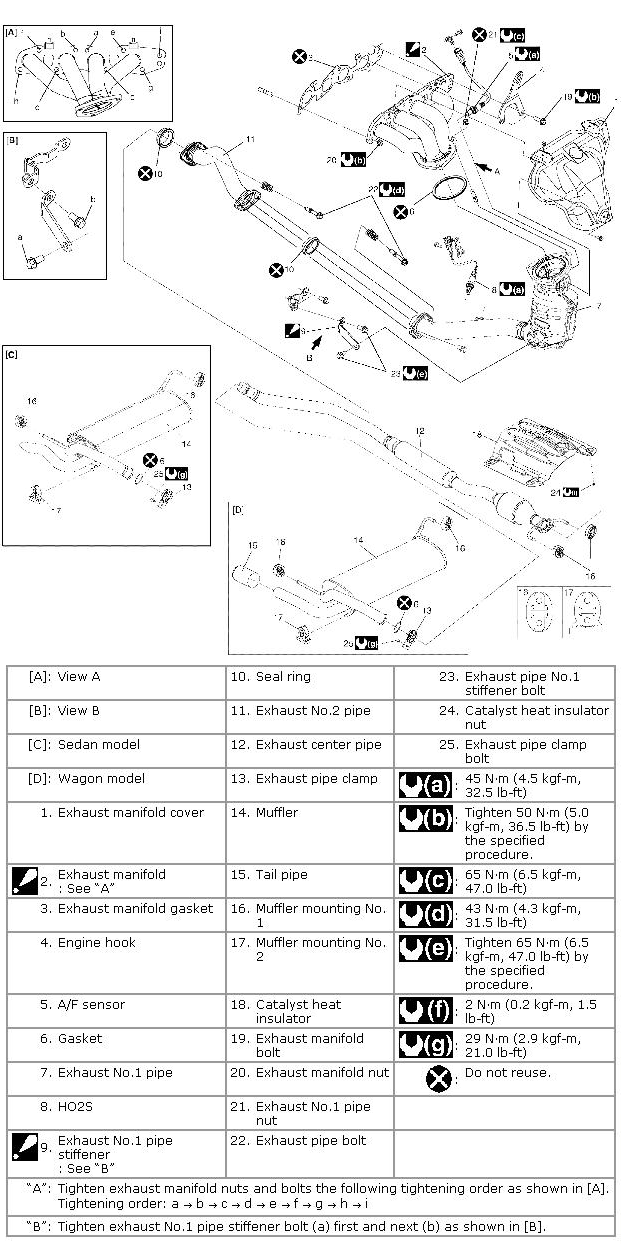

Figure
Figure
Reference:
For the tightening torque of fastener not specified in this article, refer to FASTENERS INFORMATION .
