Component Location
>>
ABS Component Location
ABS Component Location

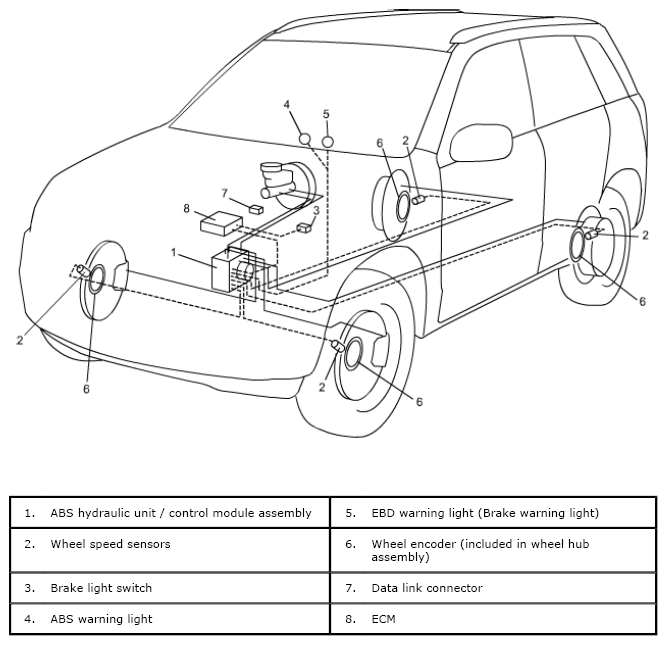

Fig 1: Identifying ABS Component Location
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
