Electronic Stability Program Wiring Circuit Diagram: Notes

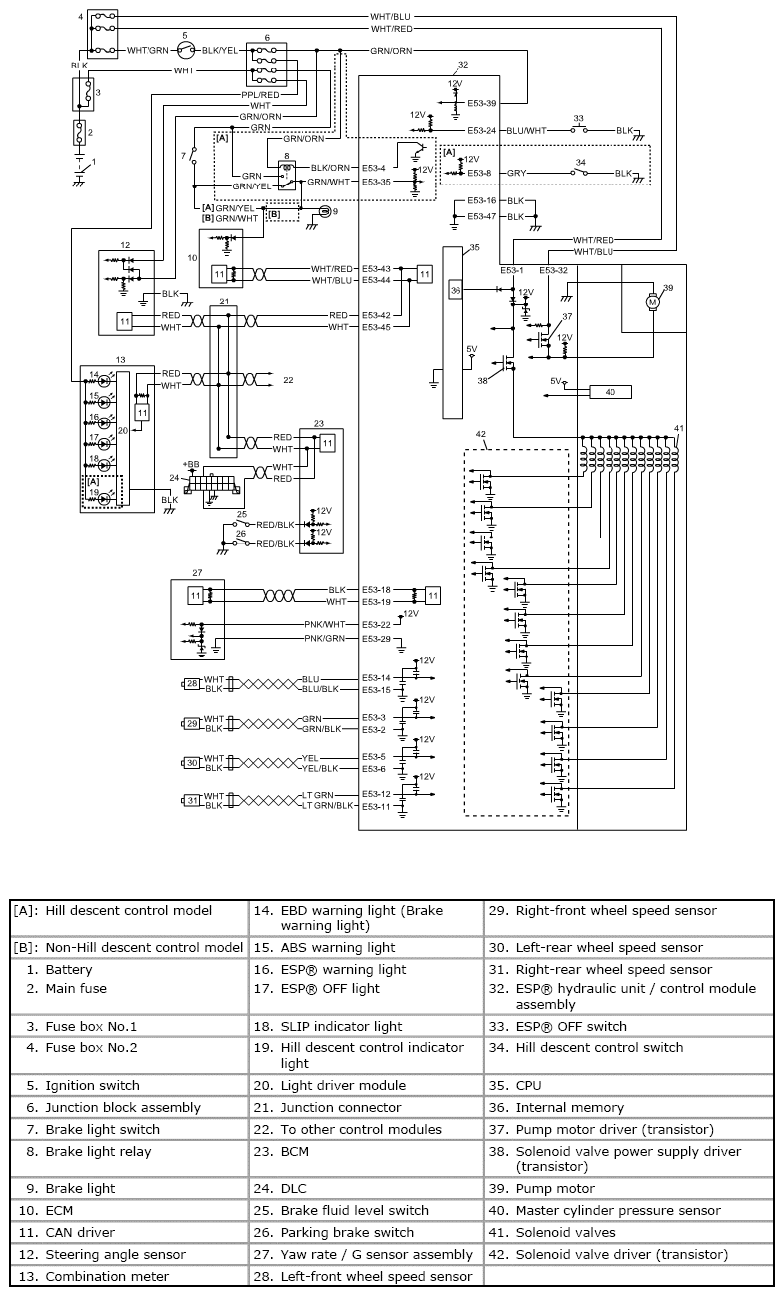

Fig 1: Electronic Stability Program Wiring Circuit Diagram

G06498499

Courtesy of SUZUKI OF AMERICA CORP.
