Electronic Stability Program Schematic

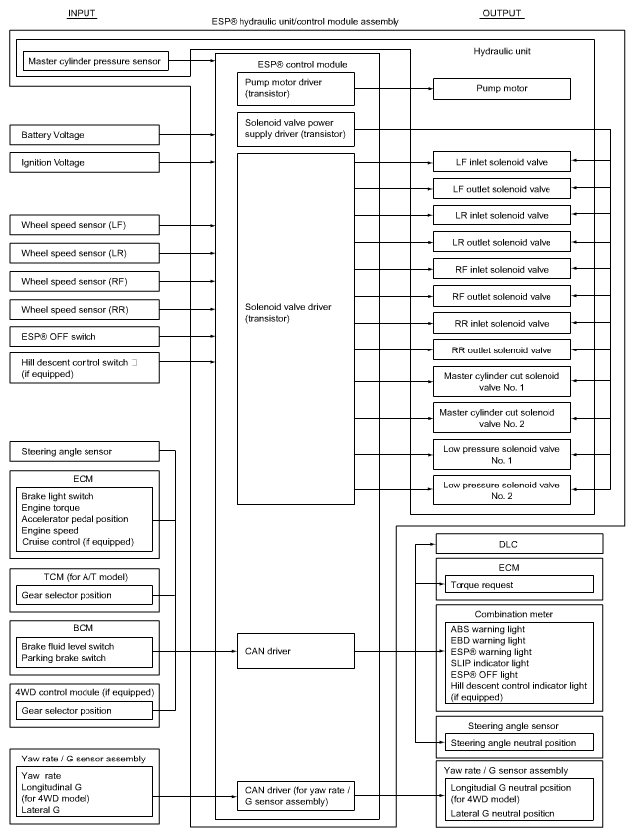

Fig 1: Electronic Stability Program Schematic Diagram

G06498498

Courtesy of SUZUKI OF AMERICA CORP.
