Power Door Lock and Keyless Entry System Component Location
Power Door Lock and Keyless Entry System Component Location

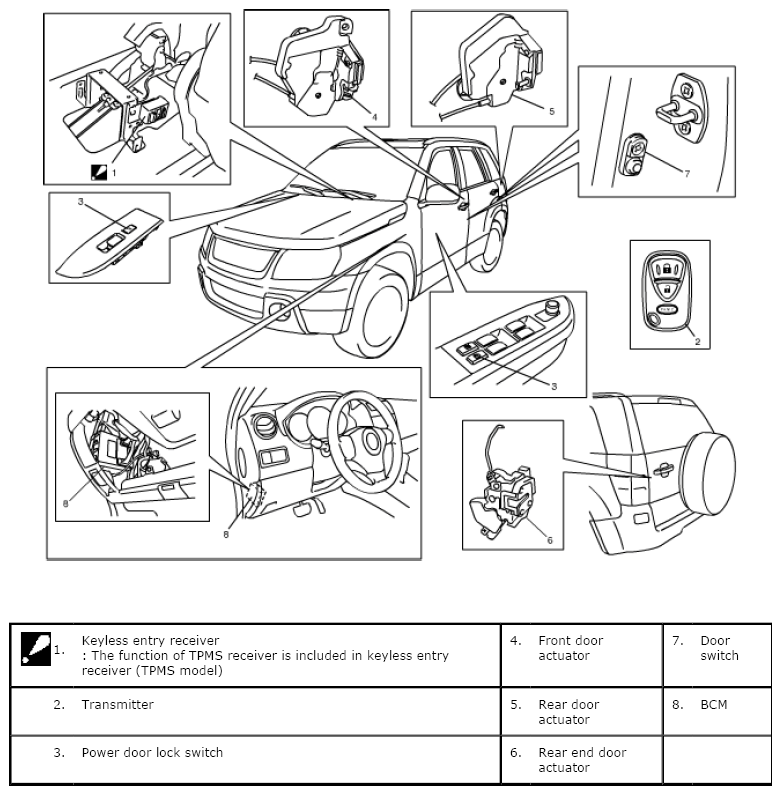

Fig 1: Identifying Power Door Lock And Keyless Entry System Component Location
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
