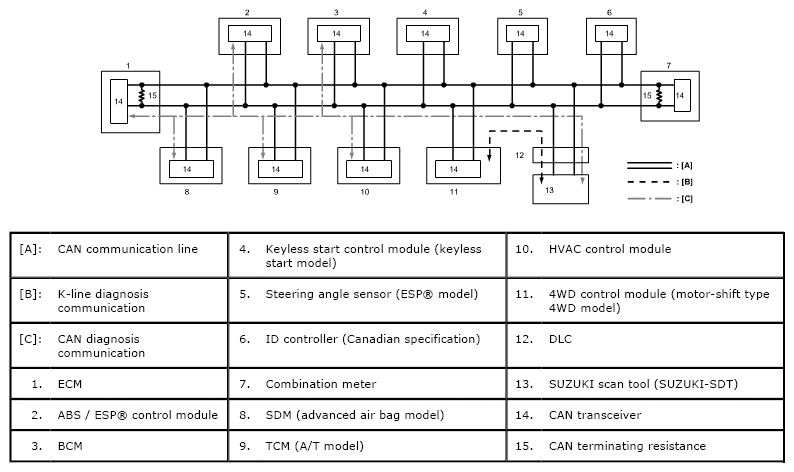

Home >> Suzuki >> 2009 >> Grand Vitara Base, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Communication System >> General Description >> CAN Communication System Description >> System Block Diagram
