With SDT

  1. Check the coolant level in the reservoir tank and radiator.

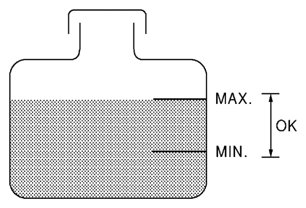

    Fig 1: Checking Coolant Level In Reservoir Tank And Radiator
    G06441533Courtesy of SUZUKI OF AMERICA CORP.

    Allow engine to cool before checking coolant level.

    If the coolant level in the reservoir tank and/or radiator is below the proper range, skip the following steps and go to [P1217 ENGINE OVER TEMPERATURE ].

  2. Confirm whether customer filled the coolant or not. If customer filled the coolant, skip the following steps and go to [P1217 ENGINE OVER TEMPERATURE ].
  3. Turn ignition switch ON.
  4. Perform "COOLING FAN" in "Active test" mode with SDT.
  5. If the results are NG, go to [P1217 ENGINE OVER TEMPERATURE ].
