With GST

  1. Check the coolant level in the reservoir tank and radiator.

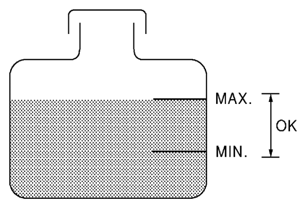

    Fig 1: Checking Coolant Level In Reservoir Tank And Radiator
    G06441534Courtesy of SUZUKI OF AMERICA CORP.

    Allow engine to cool before checking coolant level.

    If the coolant level in the reservoir tank and/or radiator is below the proper range, skip the following steps and go to [P1217 ENGINE OVER TEMPERATURE ].

  2. Confirm whether customer filled the coolant or not. If customer filled the coolant, skip the following steps and go to [P1217 ENGINE OVER TEMPERATURE ].
  3. Perform IPDM E/R auto active test and check cooling fan motor operation, refer to [DIAGNOSIS SYSTEM (IPDM E/R): DIAGNOSIS DESCRIPTION ]
  4. If NG, go to [P1217 ENGINE OVER TEMPERATURE ].
