Engine Control System: System Diagram

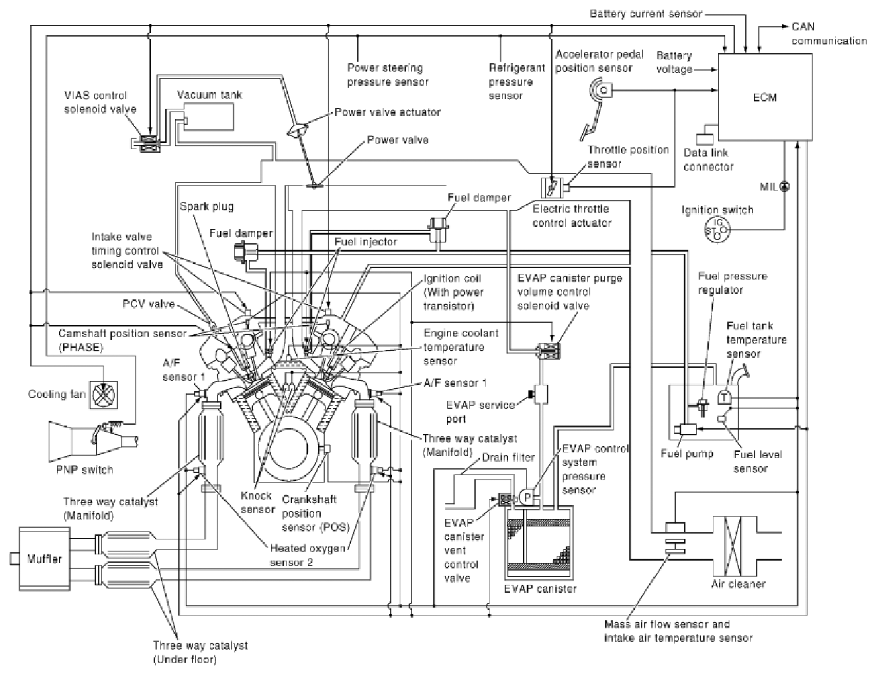

Fig 1: Engine Control System Diagram

G06441176

Courtesy of SUZUKI OF AMERICA CORP.
