IPDM E/R (Intelligent Power Distribution Module Engine Room): Wiring Diagram

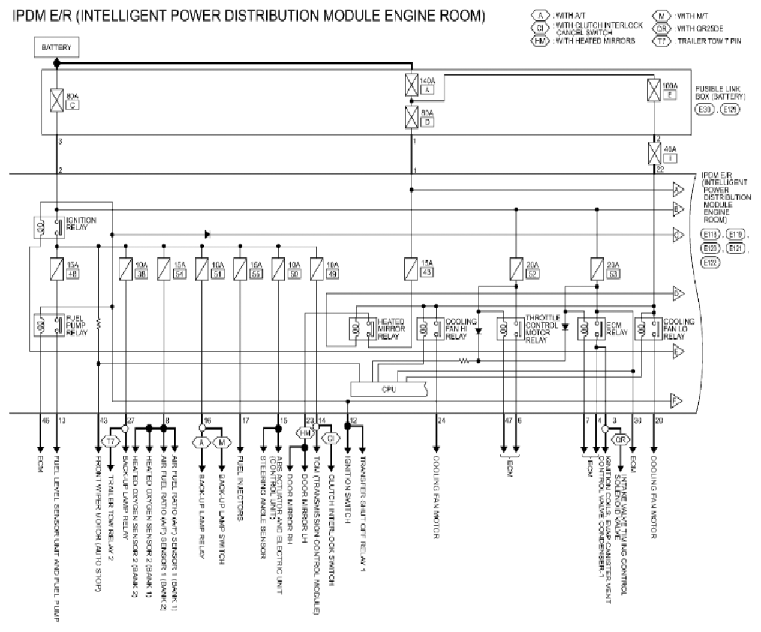

Fig 1: IPDM E/R (Intelligent Power Distribution Module Engine Room) - Wiring Diagram (1 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

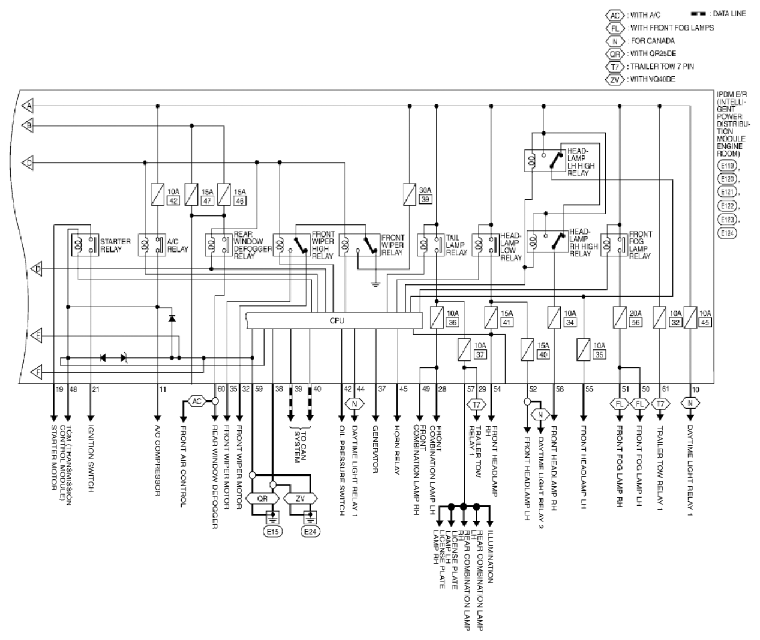

Fig 2: IPDM E/R (Intelligent Power Distribution Module Engine Room) - Wiring Diagram (2 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

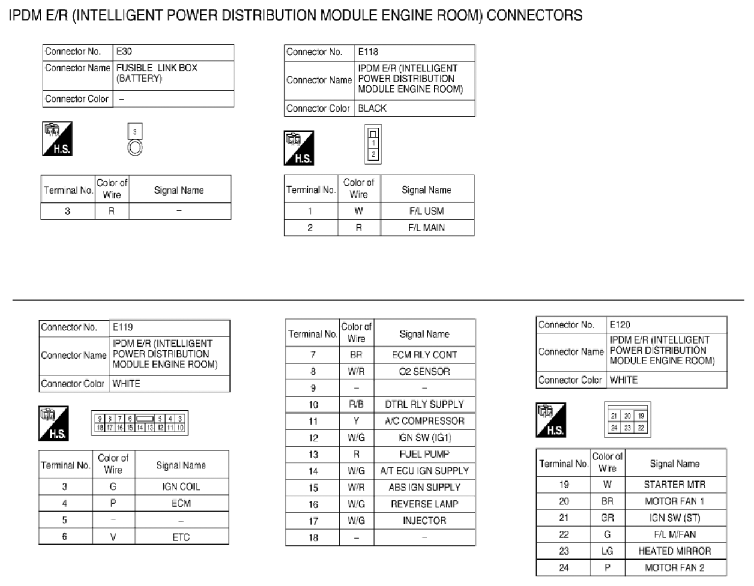

Fig 3: IPDM E/R (Intelligent Power Distribution Module Engine Room) - Wiring Diagram (3 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

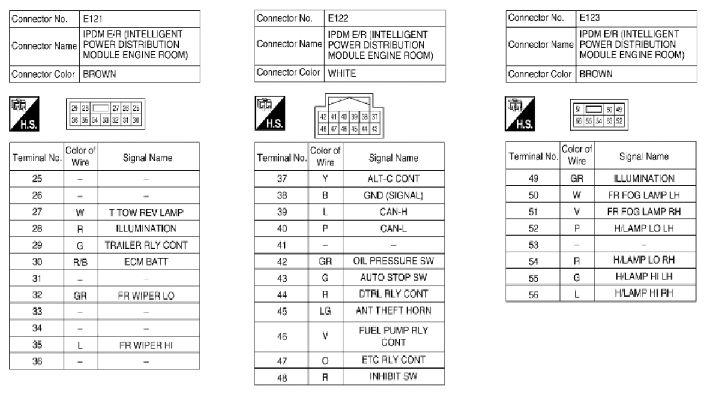

Fig 4: IPDM E/R (Intelligent Power Distribution Module Engine Room) - Wiring Diagram (4 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

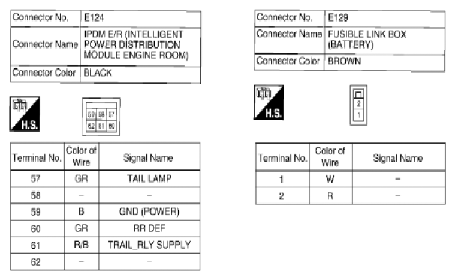

Fig 5: IPDM E/R (Intelligent Power Distribution Module Engine Room) - Wiring Diagram (5 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.
