Lubrication System: System Chart

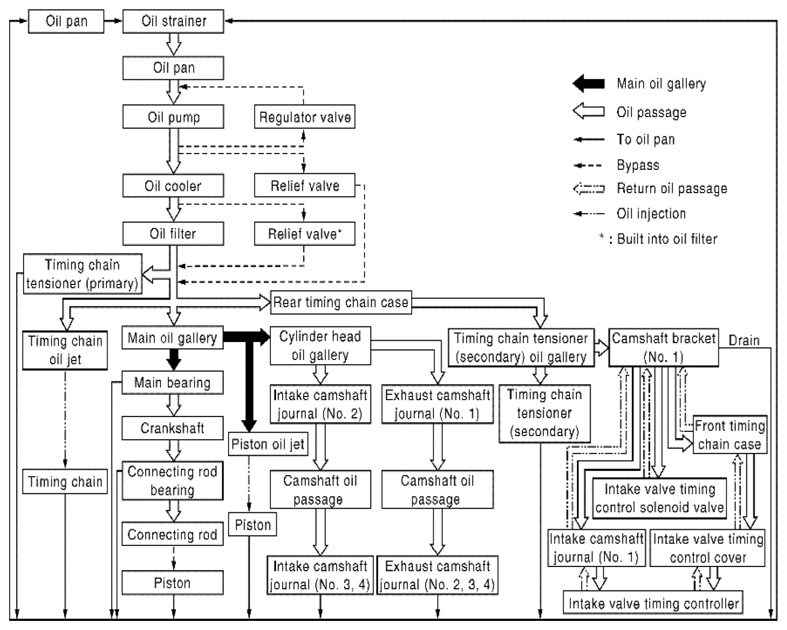

Fig 1: Lubrication System Chart

G06444464

Courtesy of SUZUKI OF AMERICA CORP.
