Clutch Master Cylinder: Exploded View

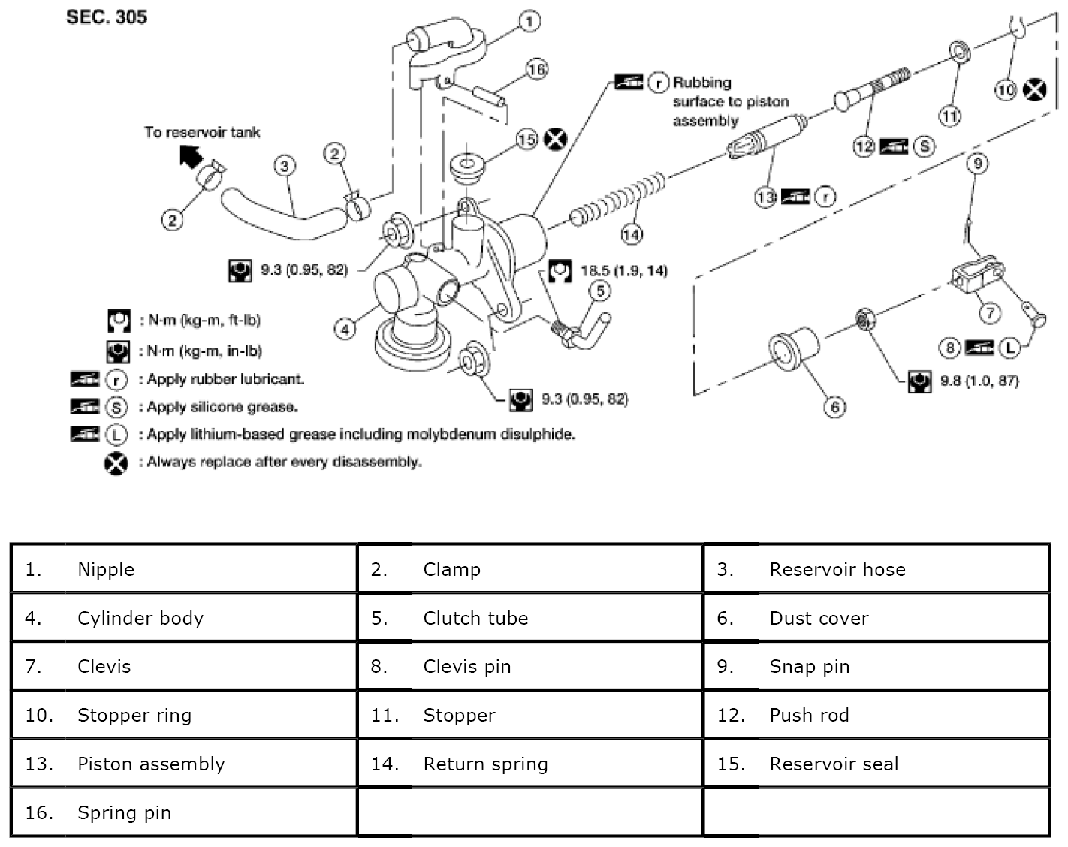

Fig 1: Exploded View Of Clutch Master Cylinder

G06445779

Courtesy of SUZUKI OF AMERICA CORP.
