Removal Procedure

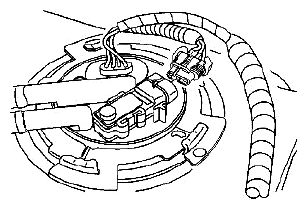

Fig 1: Identifying Fuel Pump Module Harness Electrical Connector And Fuel Tank Pressure Sensor

Courtesy of SUZUKI OF AMERICA CORP.

Remove the fuel tank. Refer to FUEL TANK REPLACEMENT (FWD) or FUEL TANK REPLACEMENT (AWD) .
Disconnect the fuel pump module harness electrical connector from the fuel tank pressure sensor.

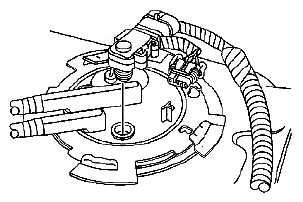

Fig 2: Identifying Fuel Tank Pressure Sensor And Fuel Pump Module Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Position 2 flat-bladed screwdrivers, one on each side of the sensor, near the vacuum port.
Carefully use the screwdrivers to lift and release the sensor from the fuel pump module.
