Removal Procedure

  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .

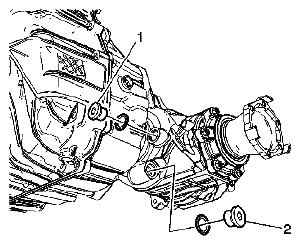

    Fig 1: Identifying Drain Plug And Fill Plug
    G05469449Courtesy of SUZUKI OF AMERICA CORP.
  2. Remove the drain plug (2).
  3. Remove the fill plug (1).
