Removal Procedure

  1. Raise and support the vehicle. refer to LIFTING AND JACKING THE VEHICLE .
  2. Support the transaxle with an appropriate jack.

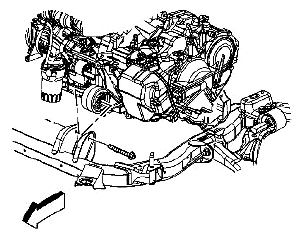

    Fig 1: Identifying Front Transaxle Mount Thru Bolt
    G05469817Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove the front transaxle mount thru bolt.

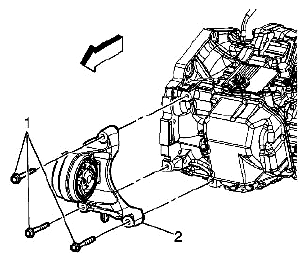

    Fig 2: Identifying Bolts And Front Transaxle Mount
    G05469818Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove the front transaxle mount to transaxle bolts (1).
  5. Remove the front transaxle mount (2) from the vehicle.
