Transmission Control Replacement

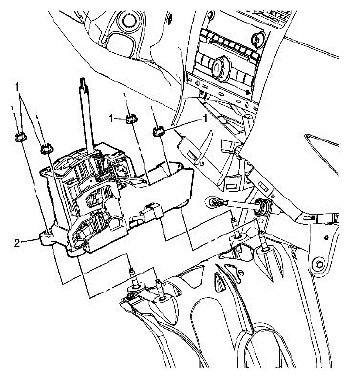

Fig 1: Identifying Transmission Control Components
G05469793Courtesy of SUZUKI OF AMERICA CORP.
COMPONENT NAME CHART

Callout Component Name
Preliminary Procedures
  1. Disable the supplemental inflatable restraint (SIR) system. refer to SIR DISABLING AND ENABLING .
  2. Remove the shift control lever knob. refer to TRANSMISSION CONTROL LEVER KNOB REPLACEMENT .
  3. Remove the shift control boot. refer to TRANSMISSION CONTROL LEVER BOOT REPLACEMENT .
  4. Remove the instrument panel lower brace bezel. refer to INSTRUMENT PANEL LOWER BRACE BEZEL REPLACEMENT .
  5. Disconnect the shift control cable. refer to SHIFT CONTROL CABLE REPLACEMENT .
  6. Disconnect the shift control electrical connector.
1 Shift Control Nuts (Qty 4).
CAUTION: refer to FASTENER NOTICE .

Tightening torque
Tighten the nuts to 25 N.m (18 lb ft).
2 Shift Control
