Park Lamp - Right Front (Chevrolet)

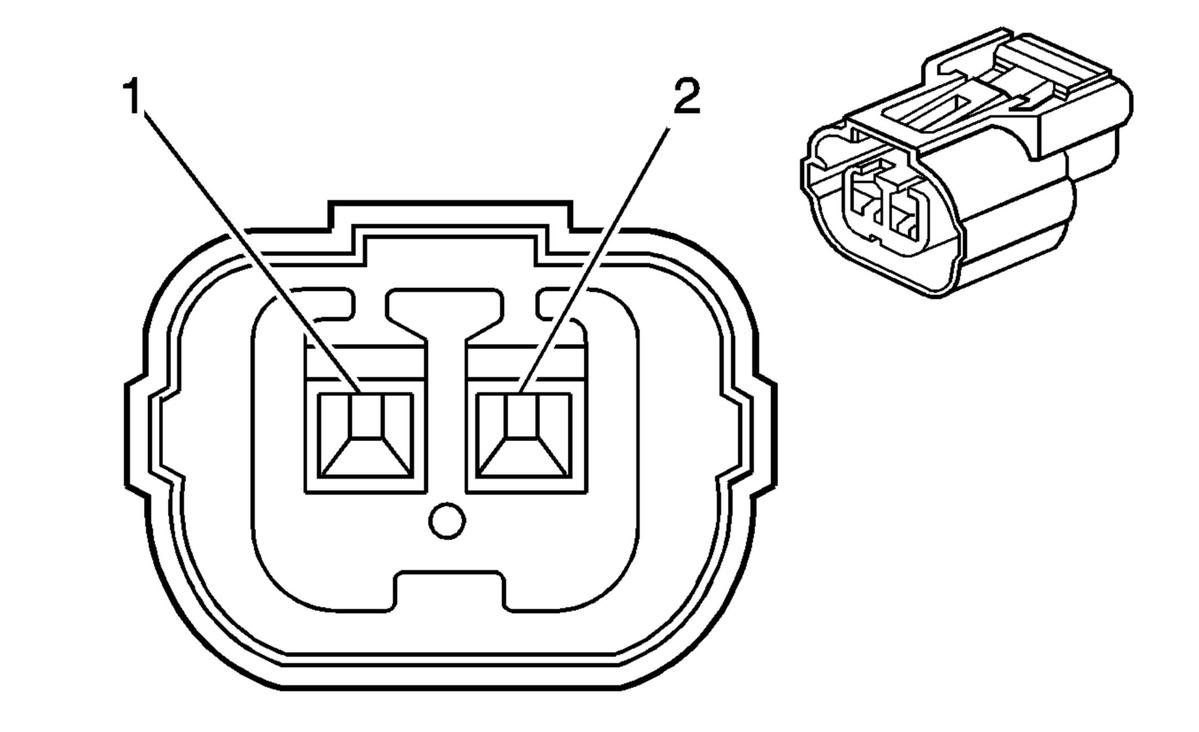

Fig 1: Park Lamp - Right Front (Chevrolet) Connector End View
GM1290303Courtesy of GENERAL MOTORS CORP.
Park Lamp - Right Front (Chevrolet)

Pin Wire Circuit Function
1 0.35 BN/WH 309 Right Park Lamp Supply Voltage
2 0.35 BK 1250 Ground
Connector Part Information
  • OEM: 6189-0890
  • Service: 88988458
  • Description: 2-Way F 040 (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
