Oil Pump Installation

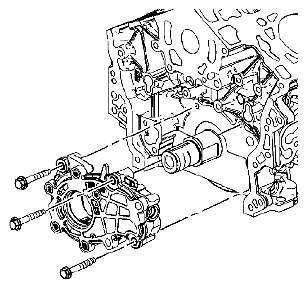

Fig 1: Identifying Oil Pump Bolts
G05469220Courtesy of SUZUKI OF AMERICA CORP.
  1. Align the oil pump generator with the crankshaft flats and install the oil pump to the engine block.
  2. Align the pump body with the mounting holes in the cylinder block.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the oil pump bolts.

    Tightening torque

    Tighten the oil pump bolts to 23 N.m (17 lb ft).

    Reference: OIL PAN INSTALLATION
