Ambient Air Temperature Sensor Replacement

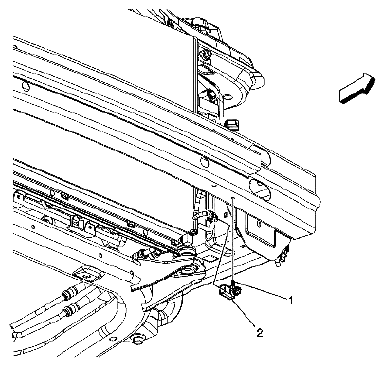

Fig 1: Identifying Ambient Air Temperature Sensor

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS NAME REFERENCE

Callout	Component Name
1	Ambient Air Temperature Sensor Retainer
2	Ambient Air Temperature Sensor Tip:  Disconnect the electrical connector.
