Front Side Door Window Switch Replacement

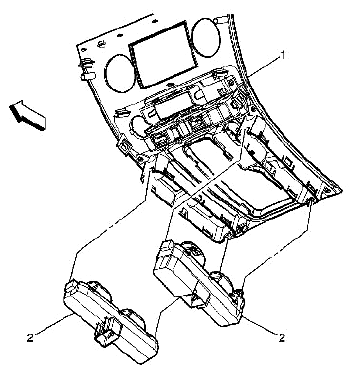

Fig 1: Identifying Front Side Door Window Switch And Instrument Panel Trim Bezel

Courtesy of SUZUKI OF AMERICA CORP.

FRONT SIDE DOOR WINDOW SWITCH REFERENCE

Callout	Component Name
1	Instrument Panel Lower Trim Bezel Refer to INSTRUMENT PANEL ACCESSORY TRIM PLATE REPLACEMENT .
2	Power Window Switch Assembly Tip:  Use a flat-bladed tool to pry switch from trim bezel.
