Installation Procedure

  1. Install the window by sliding the window into the door through the outside.
  2. Install the window into the primary window run channels and position into the regulator guide plate.

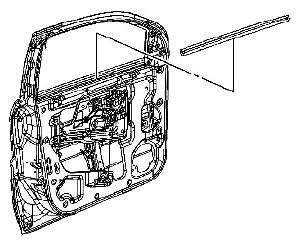

    Fig 1: Installing Window Into Primary Window Run Channels
    G05471208Courtesy of SUZUKI OF AMERICA CORP.
  3. Install the inner belt seal. Refer to FRONT SIDE DOOR WINDOW BELT INNER SEALING STRIP REPLACEMENT .
  4. Install the front door water deflector. Refer to FRONT SIDE DOOR WATER DEFLECTOR REPLACEMENT .
  5. Install the front inner door trim panel. Refer to FRONT SIDE DOOR TRIM PANEL REPLACEMENT .
  6. Operate the window to inspect the operation.
