Front Seat Heater Control Module Replacement

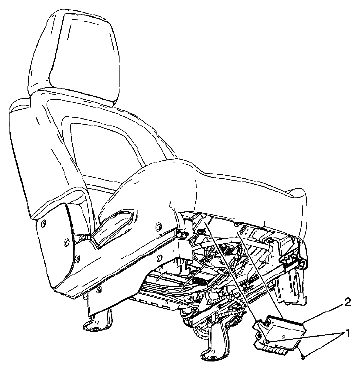

Fig 1: Identifying Front Seat Heater Control Module And Screws

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME CHART

Callout	Component Name
Preliminary Procedure  Remove the front passenger seat. Refer to FRONT SEAT REPLACEMENT - BUCKET .
1	Front Seat Heater Module Screw (Qty: 2) CAUTION: Refer to FASTENER NOTICE . Tightening torque  2 N.m (18 lb in)
2	Front Seat Heater Module Tip:  Disconnect the electrical connector.
