EVAP Leak Check System Leak Inspection: Locations

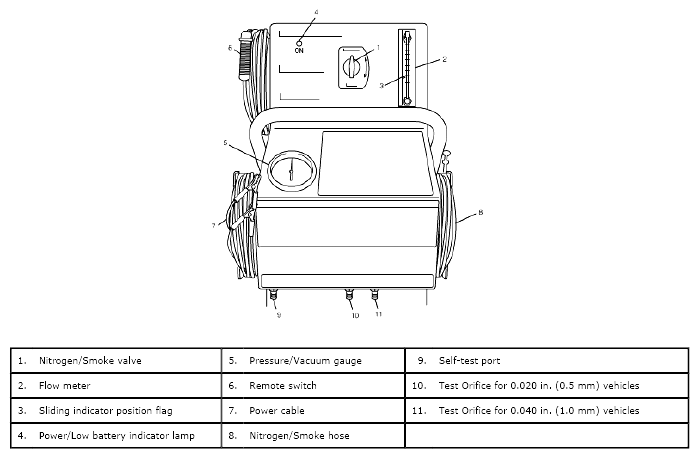

Fig 1: Identifying Evaporative Emission System Tester Components Location

G04846642

Courtesy of SUZUKI OF AMERICA CORP.
