A-6 A/T Control System Circuit Diagram

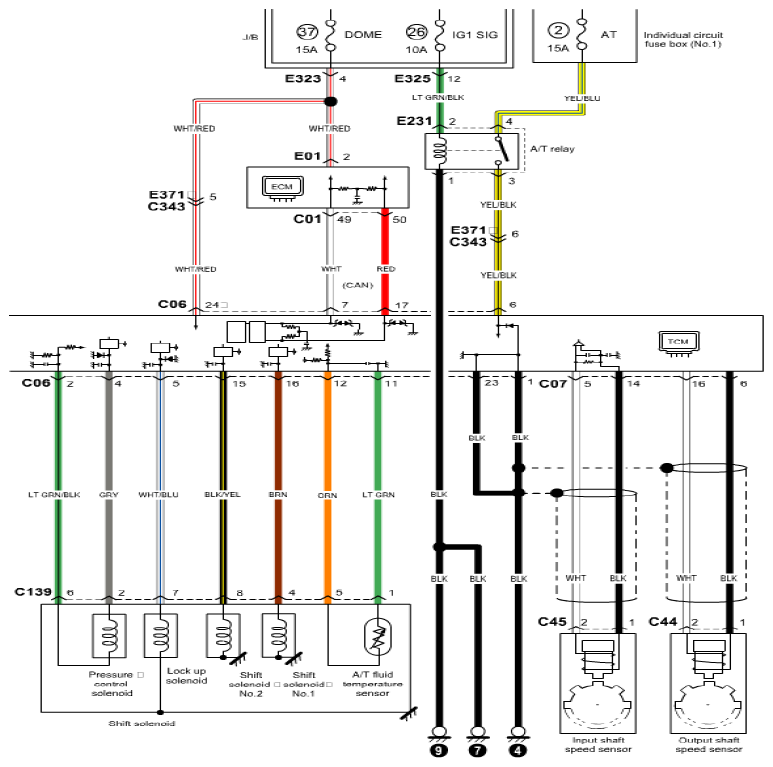

Fig 1: A/T Control System Circuit Diagram (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

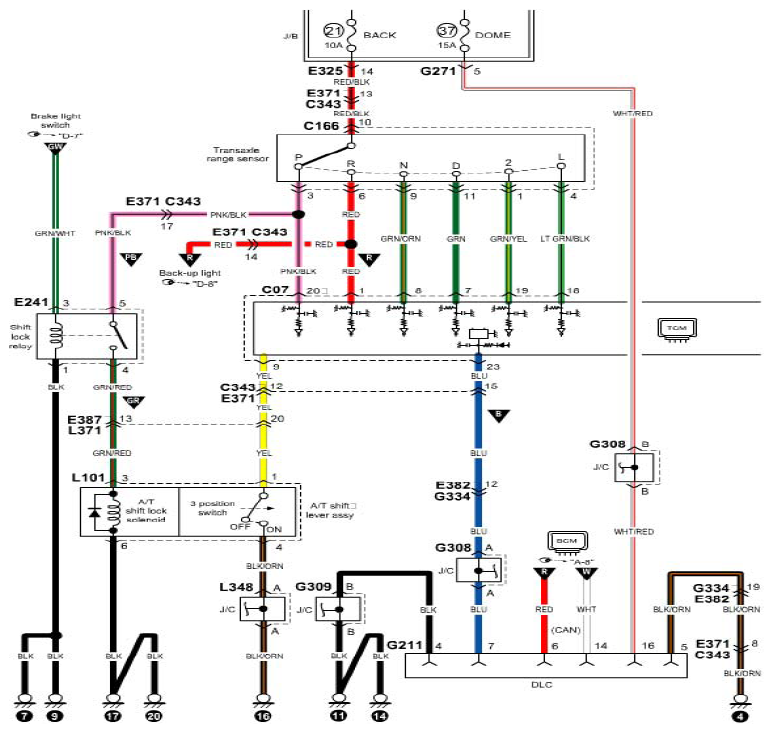

Fig 2: A/T Control System Circuit Diagram (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
