Headlight Switch (In Lighting Switch) Inspection: Notes

WARNING: This page is about a different car, the 2006 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Reference: HEADLIGHT SWITCH (IN LIGHTING SWITCH) REMOVAL AND INSTALLATION .

Check for continuity between terminals at each switch position. If check result is not as specified, replace switch.

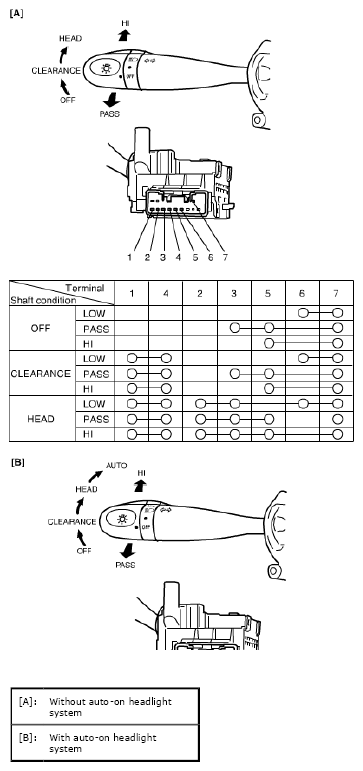

Fig 1: Testing Headlight Switch (In Lighting Switch)

Courtesy of SUZUKI OF AMERICA CORP.
