Front Fog Light Assembly Removal And Installation (If Equipped): Removal

WARNING: This page is about a different car, the 2006 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative (-) cable at battery.
Remove front bumper. Refer to FRONT BUMPER COMPONENTS .
Disconnect coupler (1) from fog light (2).
Remove fog light screws (3), and remove front fog light assembly (2).

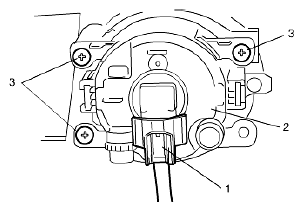

Fig 1: Front Fog Light Assembly
Courtesy of SUZUKI OF AMERICA CORP.
