Basic Aiming
WARNING: This page is about a different car, the 2006 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Unless otherwise obligated by local regulations, adjust front fog light aiming according to the following procedure.

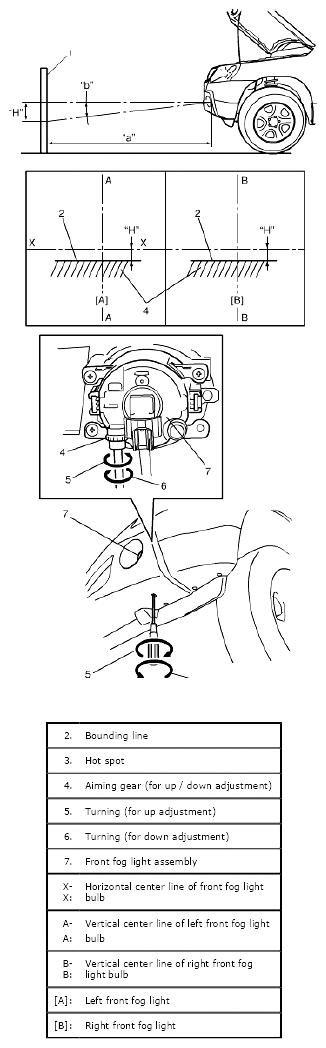

- An example in case that the light-to-wall distance 10 m is shown in the illustration. The beam descending distance "H" is calculated when "a" is 10 m with the specification angle "b" (1.75°).
- Make sure the following items.
- Place vehicle on a flat surface in front of blank wall (screen) (1) ahead of front fog light surface.
Distance between screen and front fog light
"a": 10 m (32.8 ft.)
- Adjust air pressure of all tired to the specified value respectively.
- Bounce vehicle body up and down by hand to stabilize suspension.
- Carry out aiming with a driver aboard.
Driver's weight
68 kg (150 lb)
- Place vehicle on a flat surface in front of blank wall (screen) (1) ahead of front fog light surface.
- Check to see if hot spot (high intensity zone) of each front fog light axis falls as shown in the figure.
Hot spot specification
Angle "b": 1.75° (Specification)
Calculated distance "H": Approx. 300 mm (11.81 in.)
- If it is not set properly, align front fog light to specification by rotating aiming gear.
