Throttle Body Removal and Installation: Removal

  1. Disconnect the negative battery cable.
  2. Disconnect the Intake Air Temperature (IAT) sensor connector.
  3. Disconnect the breather hose from the valve cover.

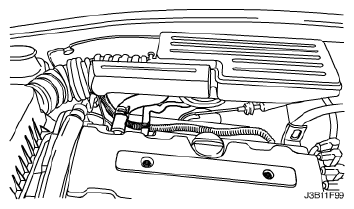

    Fig 1: Valve Cover Breather Hose
    G04716364Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove the air intake tube.
  5. Disconnect the vacuum hoses from the throttle body.
  6. Disconnect the Electric Throttle Control (ETC) connectors.
  7. Disconnect the coolant hoses from the throttle body.
  8. Remove the throttle body retaining nuts.

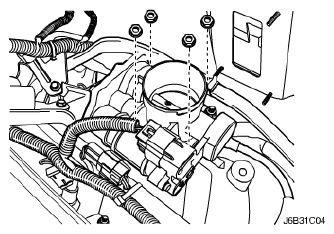

    Fig 2: Throttle Body Retaining Nuts
    G04716365Courtesy of SUZUKI OF AMERICA CORP.
