Front Strut Assembly Components

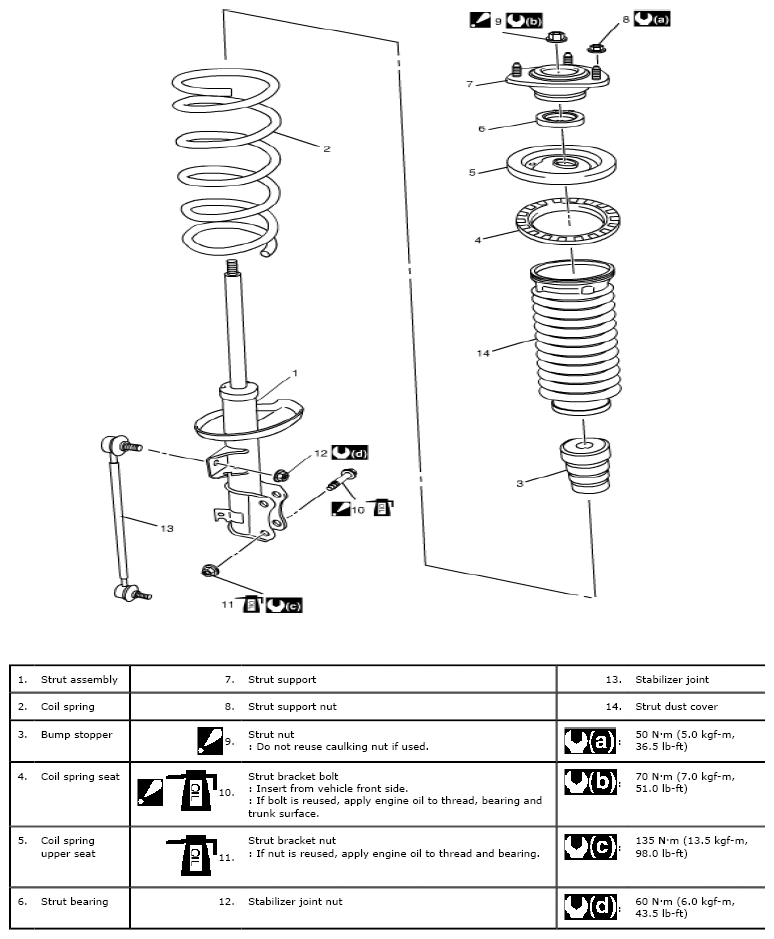

Fig 1: Identifying Front Strut Assembly Components With Tightening Torques

G05472808

Courtesy of SUZUKI OF AMERICA CORP.
