Rear Side Door Window Switch Replacement

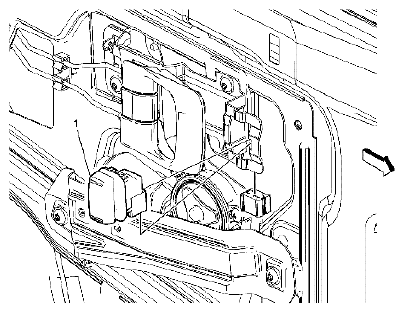

Fig 1: Identifying Rear Side Door Window Switch Assembly

Courtesy of SUZUKI OF AMERICA CORP.

REFERENCE TABLE

Callout	Component Name
Fastener Tightening Specifications: Refer to  FASTENER TIGHTENING SPECIFICATIONS - FIXED AND MOVEABLE WINDOWS  .  Preliminary Procedure  Remove rear door handle bezel. Refer to DOOR HANDLE BEZEL REPLACEMENT . Remove rear door trim panel. Refer to REAR SIDE DOOR TRIM PANEL REPLACEMENT .
1	Rear Side Door Window Switch Assembly Disconnect electrical connector. Use a flat-bladed tool to pry switch from door handle assembly.
