Home >> Suzuki >> 2007 >> XL7 Base, AWD >> Repair and Diagnosis >> Transmission >> Automatic Transmission >> Specifications >> Race and Bearing Specifications

Race and Bearing Specifications

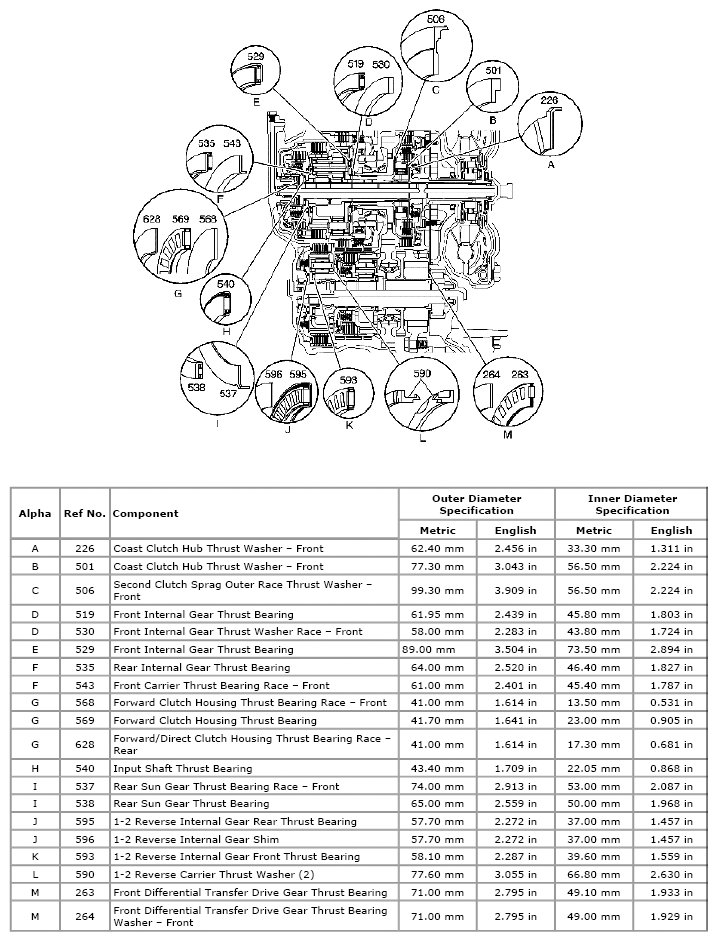

Fig 1: Identifying Races & Bearings Specifications

G04846400

Courtesy of SUZUKI OF AMERICA CORP.
