Shift Lock Solenoid/Switch Assembly Replacement

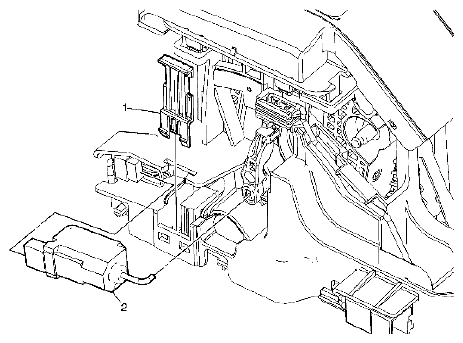

Fig 1: Identifying Brake Transaxle Shift Interlock Solenoid & Retainer

Courtesy of SUZUKI OF AMERICA CORP.

CALLOUT AND COMPONENT NAME REFERENCE

Callout	Component Name
Preliminary Procedures  Remove the console side trim panel. Refer to FRONT FLOOR CONSOLE SIDE TRIM PANEL REPLACEMENT - RIGHT SIDE . Disconnect the brake transaxle shift interlock (BTSI) solenoid harness connector.
1	Brake Transaxle Shift Interlock Solenoid Retainer.
2	Brake Transaxle Shift Interlock Solenoid.
