Fluid Passages

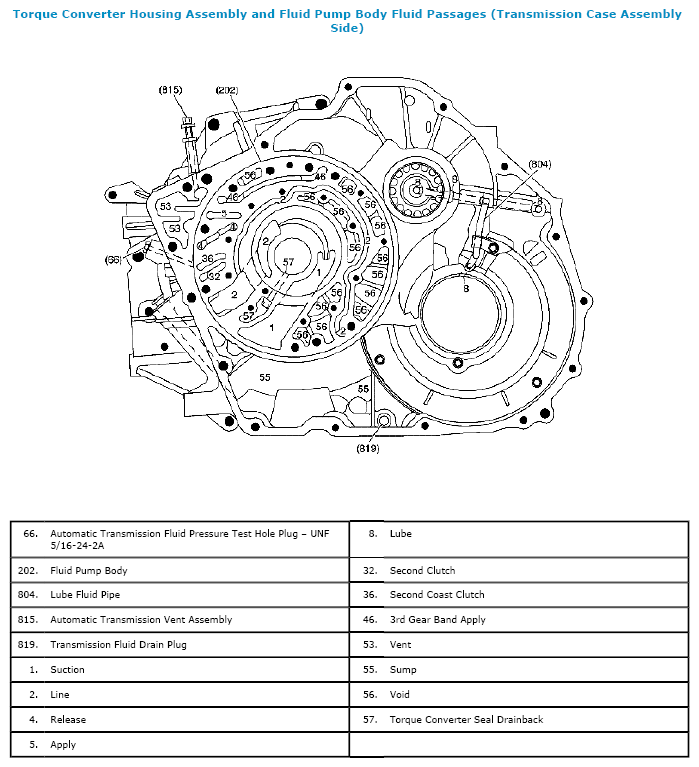

Fig 1: Identifying Torque Converter Housing Assembly & Fluid Pump Body Fluid Passages (Transmission Case Assembly Side)
G04845852Courtesy of SUZUKI OF AMERICA CORP.

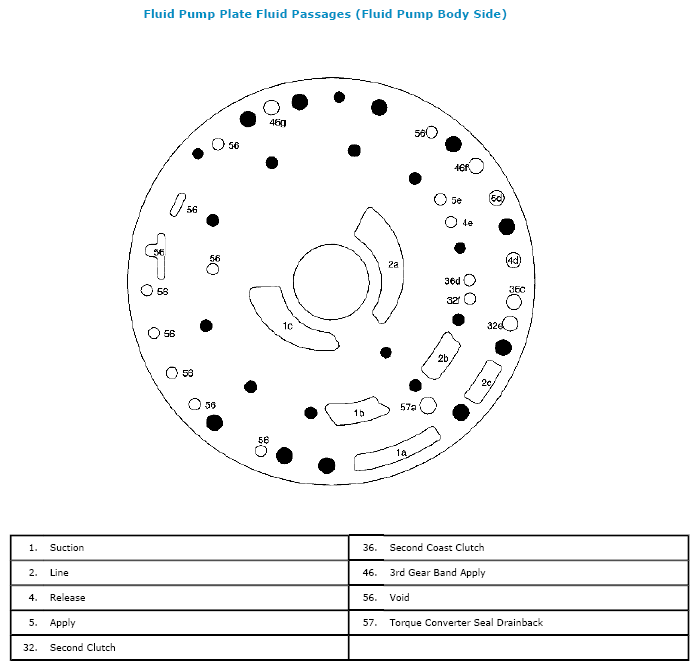

Fig 2: Identifying Fluid Pump Plate Fluid Passages (Fluid Pump Body Side)
G04845853Courtesy of SUZUKI OF AMERICA CORP.

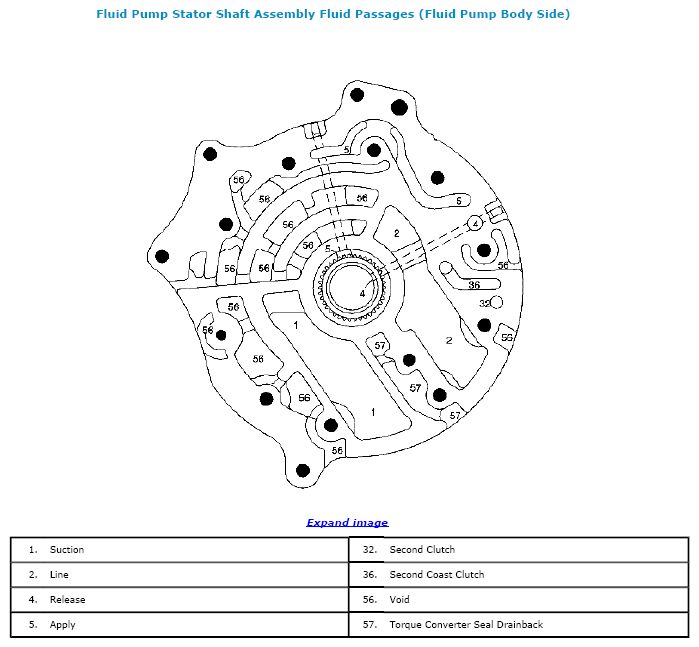

Fig 3: Identifying Fluid Pump Stator Shaft Assembly Fluid Passages (Fluid Pump Body Side)
G04845854Courtesy of SUZUKI OF AMERICA CORP.

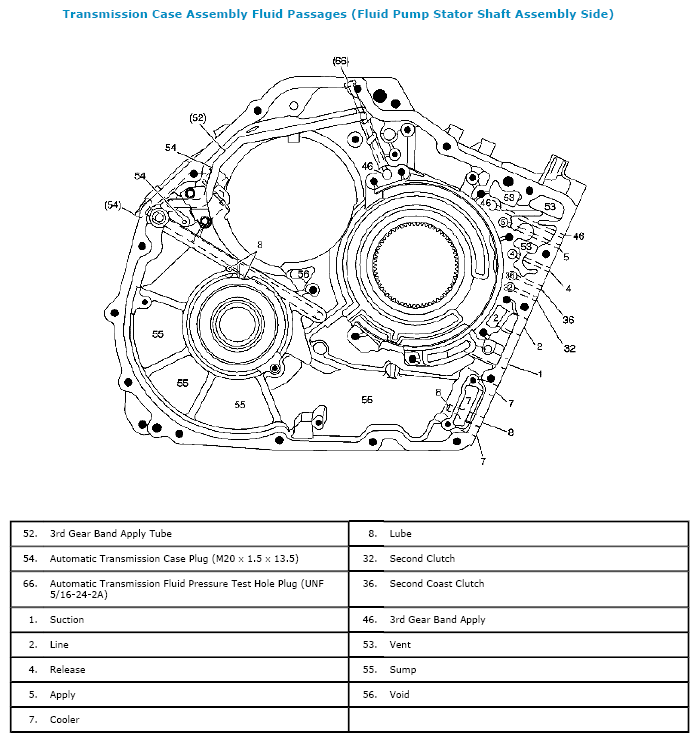

Fig 4: Identifying Transmission Case Assembly Fluid Passages (Fluid Pump Stator Shaft Assembly Side)
G04845855Courtesy of SUZUKI OF AMERICA CORP.

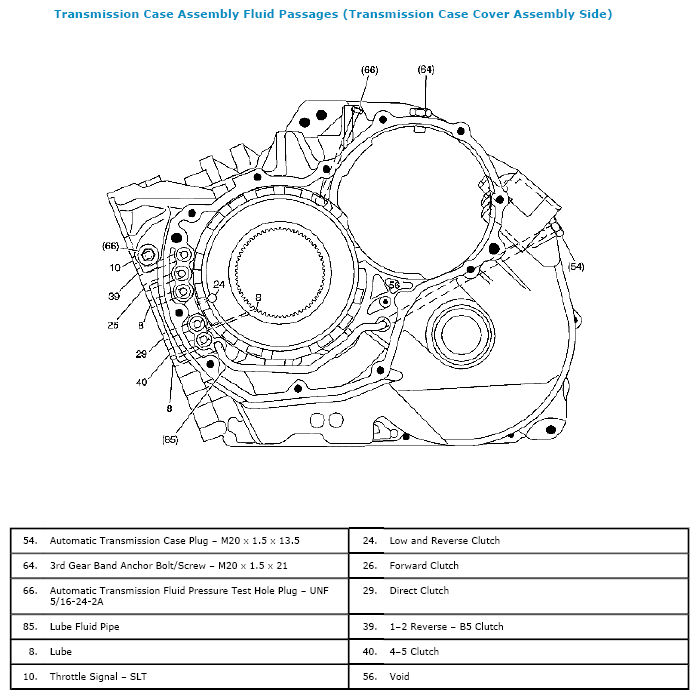

Fig 5: Identifying Transmission Case Assembly Fluid Passages (Transmission Case Cover Assembly Side)
G04845856Courtesy of SUZUKI OF AMERICA CORP.
Fig 6: Identifying Transmission Case Cover Assembly Fluid Passages (Transmission Case Assembly Side)
G04845857Courtesy of SUZUKI OF AMERICA CORP.

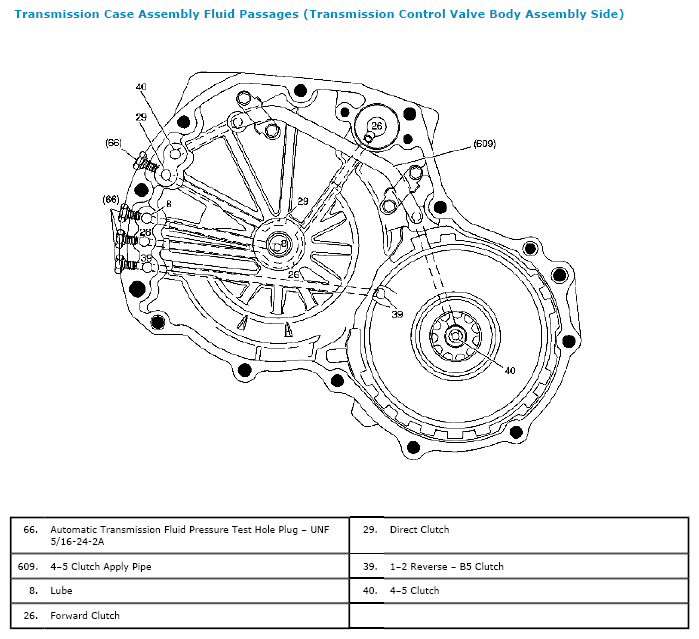

Fig 7: Identifying Transmission Case Assembly Fluid Passages (Transmission Control Valve Body Assembly Side)
G04845858Courtesy of SUZUKI OF AMERICA CORP.

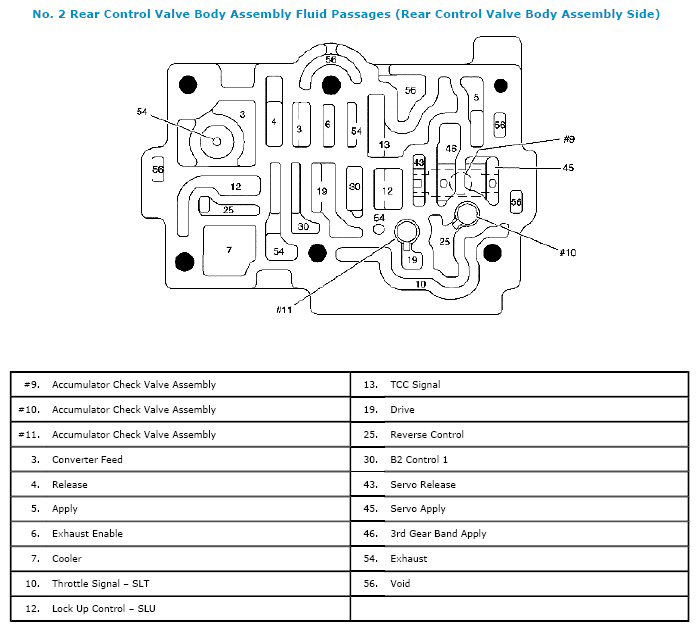

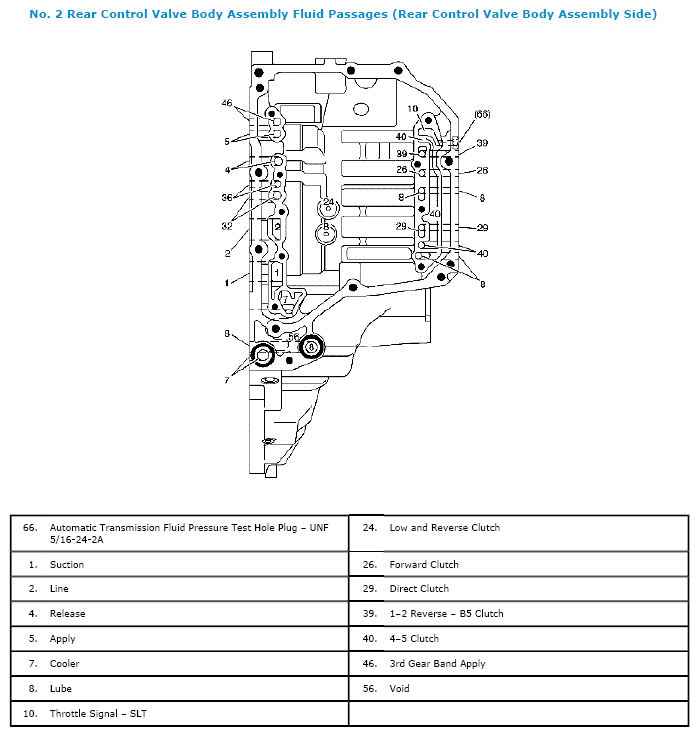

Fig 8: Identifying No. 2 Rear Control Valve Body Assembly Fluid Passages (Rear Control Valve Body Assembly Side)
G04845859Courtesy of SUZUKI OF AMERICA CORP.

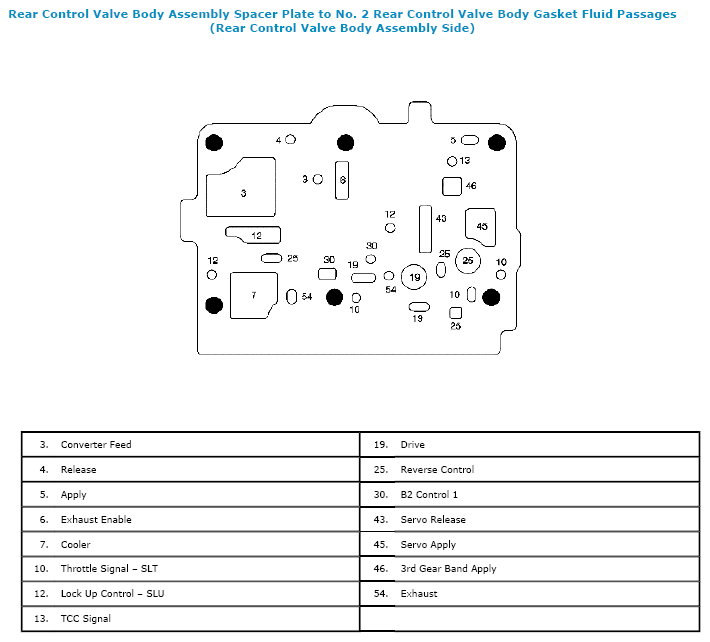

Fig 9: Identifying Rear Control Valve Body Assembly Spacer Plate Fluid Passages
G04845860Courtesy of SUZUKI OF AMERICA CORP.

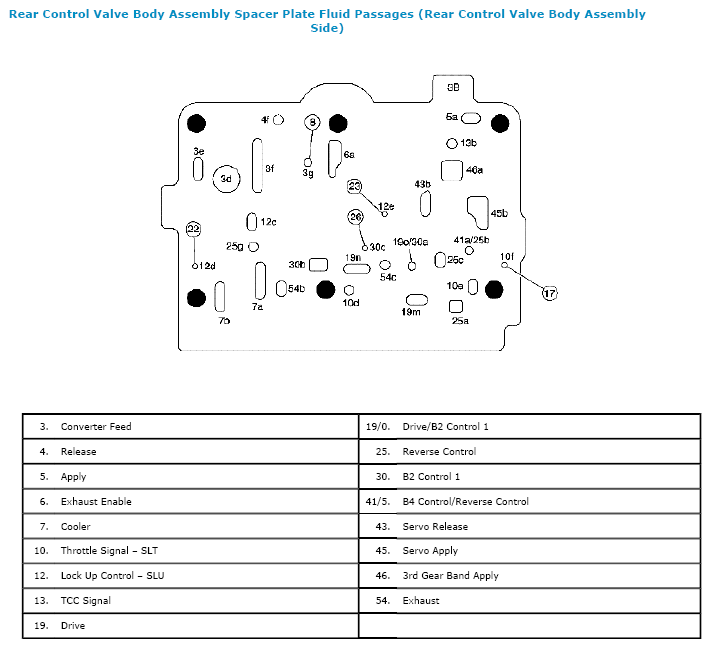

Fig 10: Identifying Rear Control Valve Body Assembly Spacer Plate Fluid Passages (Rear Control Valve Body Assembly Side)
G04845861Courtesy of SUZUKI OF AMERICA CORP.

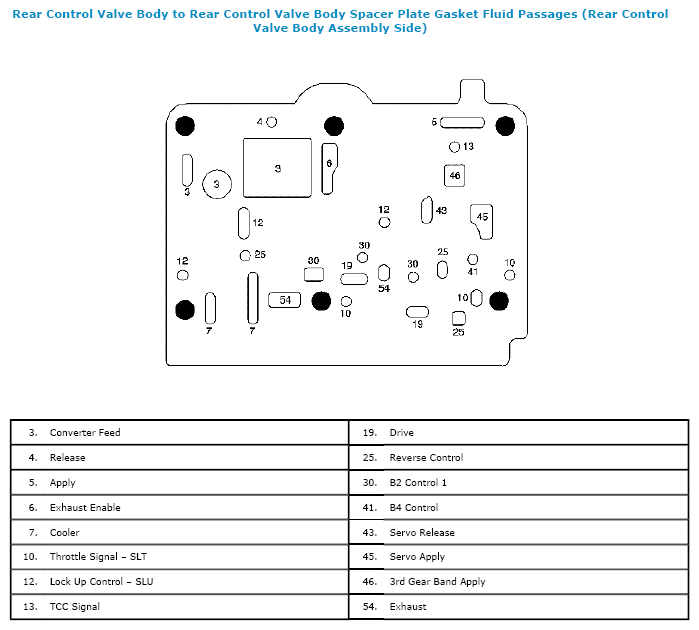

Fig 11: Identifying Rear Control Valve Body Fluid Passages (Rear Control Valve Body Assembly Side)
G04845862Courtesy of SUZUKI OF AMERICA CORP.

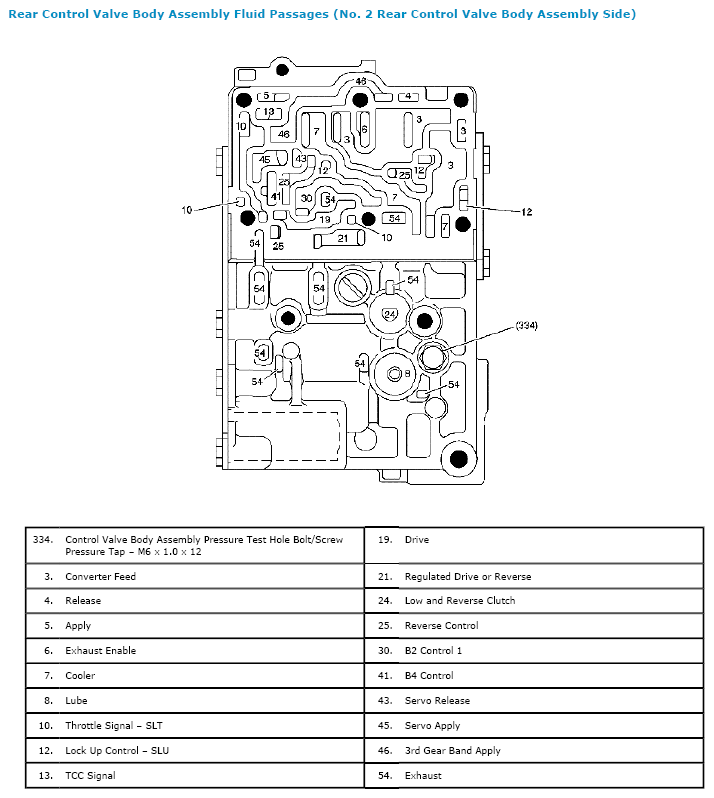

Fig 12: Identifying Rear Control Valve Body Assembly Fluid Passages (No 2 Rear Control Valve Body Assembly Side)
G04845863Courtesy of SUZUKI OF AMERICA CORP.

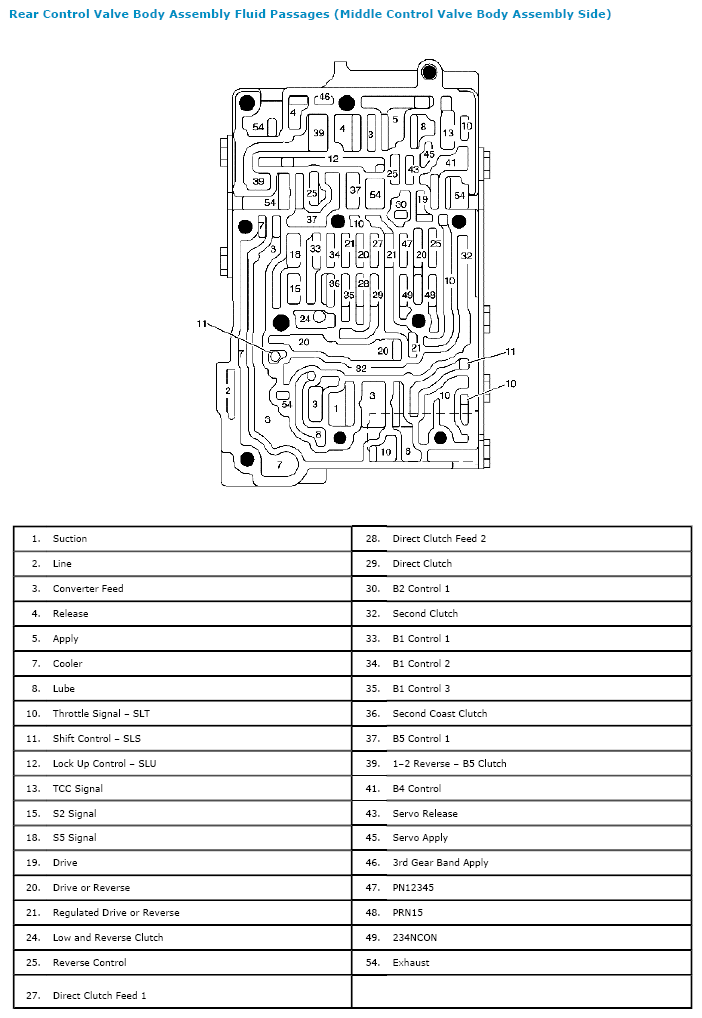

Fig 13: Identifying Rear Control Valve Body Assembly Fluid Passages (Middle Control Valve Body Assembly Side)
G04845864Courtesy of SUZUKI OF AMERICA CORP.

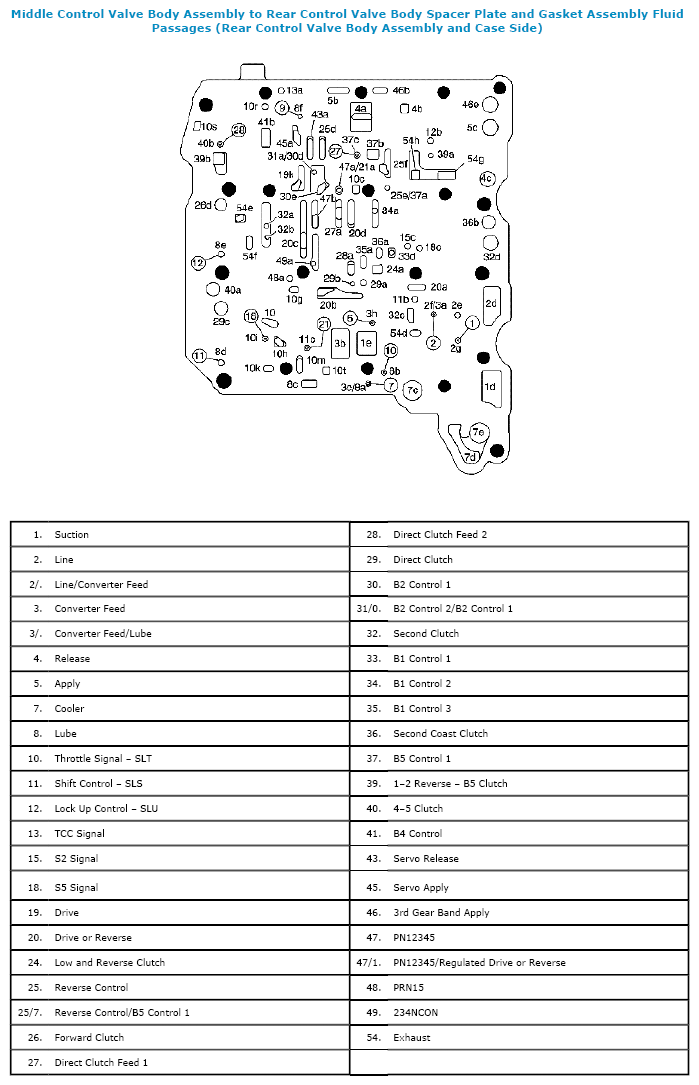

Fig 14: Identifying Middle Control Valve Body Assembly Fluid Passages (Rear Control Valve Body Assembly And Case Side)
G04845865Courtesy of SUZUKI OF AMERICA CORP.

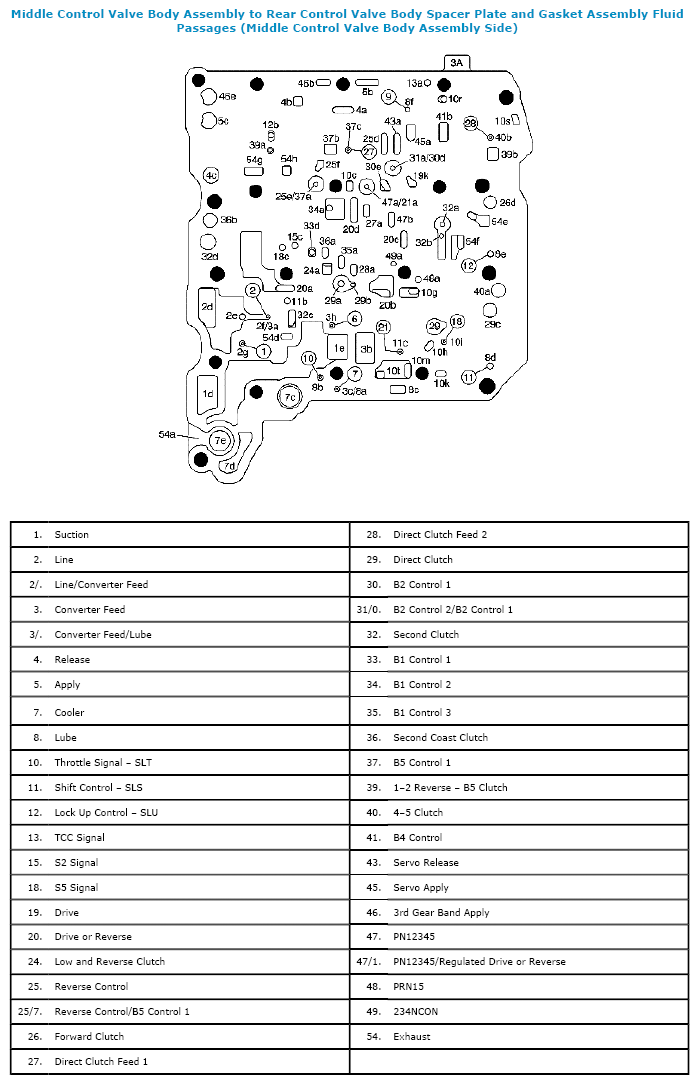

Fig 15: Identifying Middle Control Valve Body Assembly Fluid Passages (Middle Control Valve Body Assembly Side)
G04845866Courtesy of SUZUKI OF AMERICA CORP.

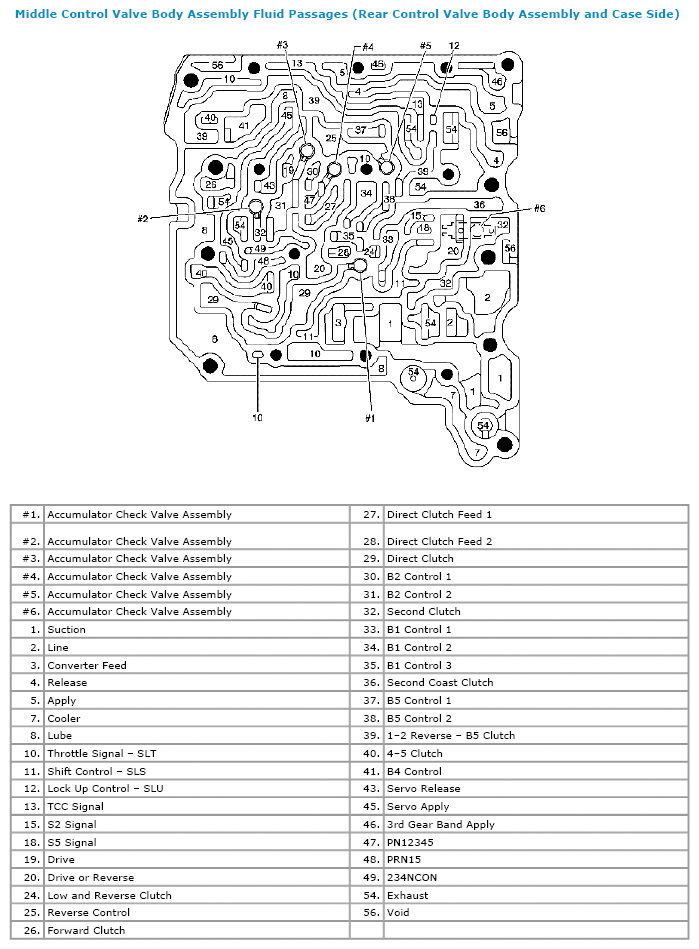

Fig 16: Identifying Middle Control Valve Body Assembly Fluid Passages (Rear Control Valve Body Assembly And Case Side)
G04845867Courtesy of SUZUKI OF AMERICA CORP.

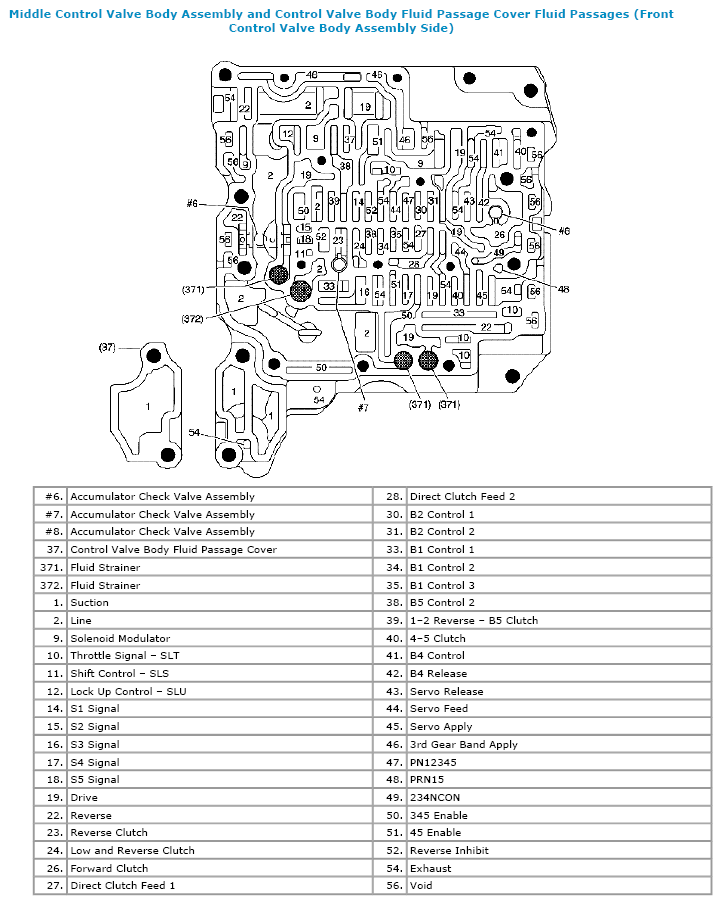

Fig 17: Identifying Middle Control Valve Body Assembly Fluid Passages (Front Control Valve Body Assembly Side)
G04845868Courtesy of SUZUKI OF AMERICA CORP.
Fig 18: Identifying Front Control Valve Body Spacer Plate Fluid Passages (Front Control Valve Body Assembly Side)
G04845869Courtesy of SUZUKI OF AMERICA CORP.

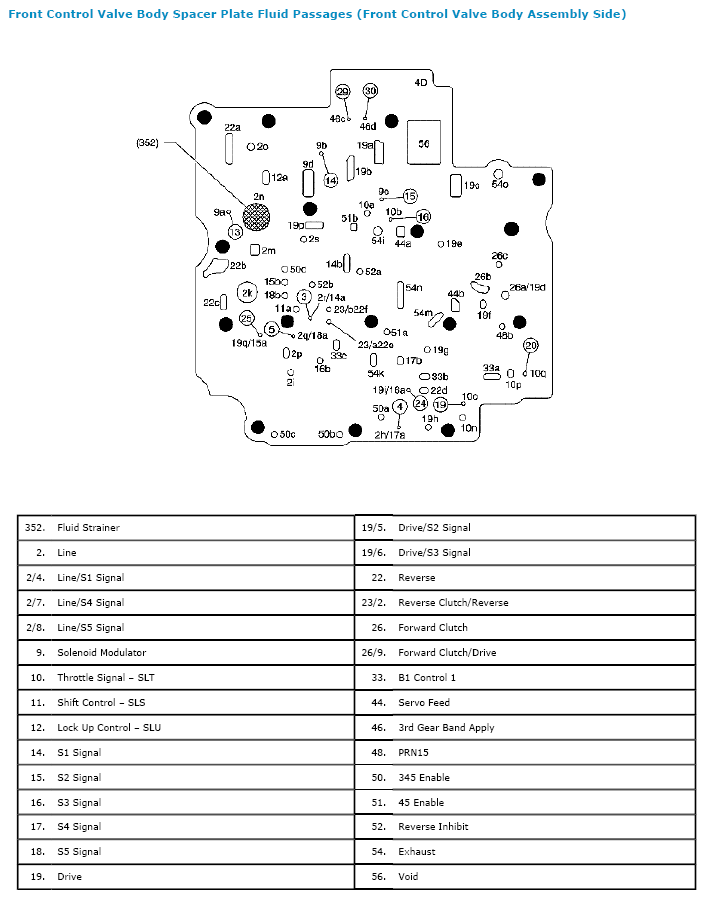

Fig 19: Identifying Front Control Valve Body Spacer Plate Fluid Passages (Front Control Valve Body Assembly Side)
G04845870Courtesy of SUZUKI OF AMERICA CORP.

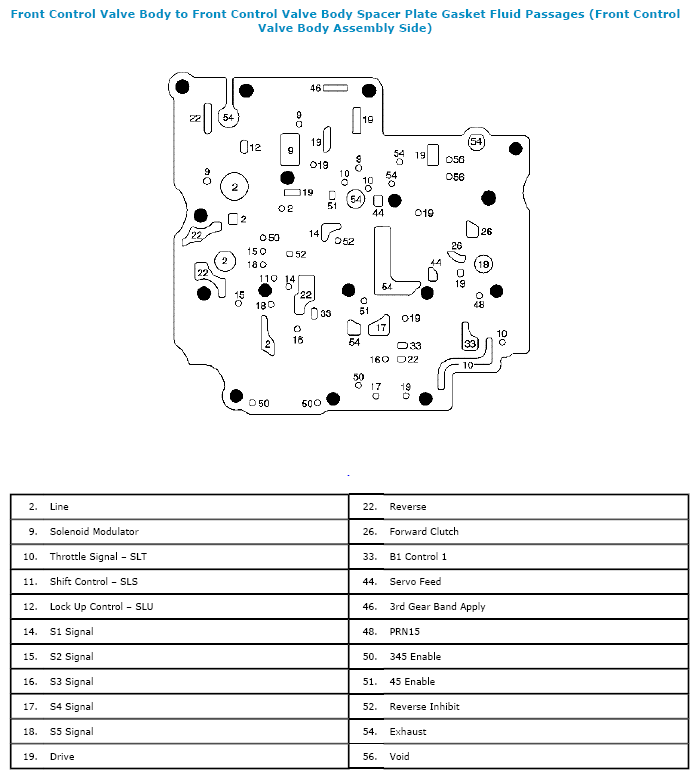

Fig 20: Identifying Front Control Valve Body Fluid Passages (Front Control Valve Body Assembly Side)
G04845871Courtesy of SUZUKI OF AMERICA CORP.

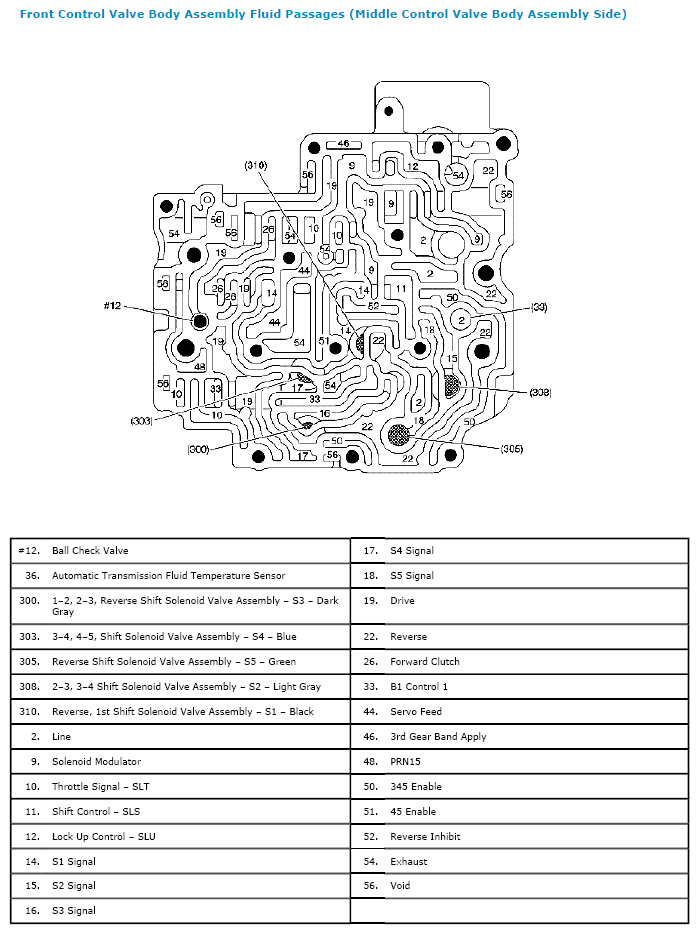

Fig 21: Identifying Front Control Valve Body Assembly Fluid Passages (Middle Control Valve Body Assembly Side)
G04845872Courtesy of SUZUKI OF AMERICA CORP.
