Home >> Suzuki >> 2007 >> XL7 Base, AWD >> Repair and Diagnosis >> Transmission >> Automatic Transmission >> Component Location >> Automatic Transmission Electronic Component Views

Automatic Transmission Electronic Component Views

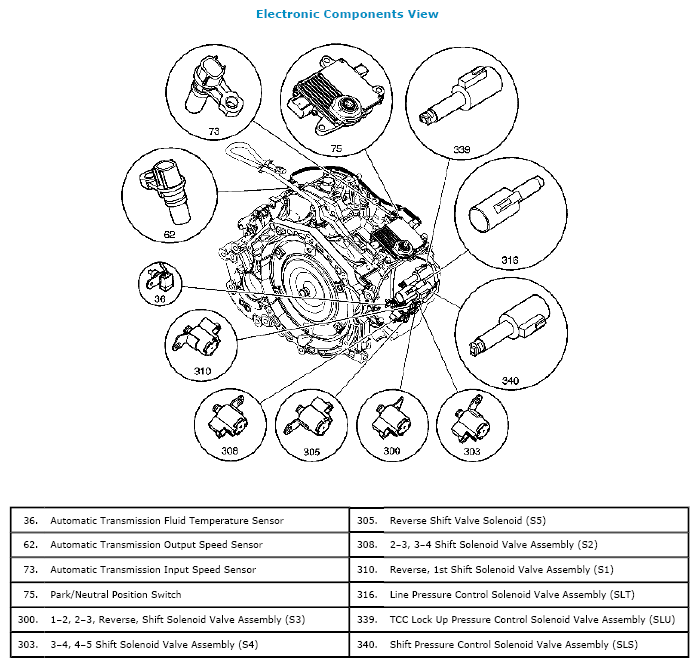

Fig 1: Automatic Transmission Electronic Components Locations

G04845828

Courtesy of SUZUKI OF AMERICA CORP.
