Steering Wheel Position Sensor Replacement

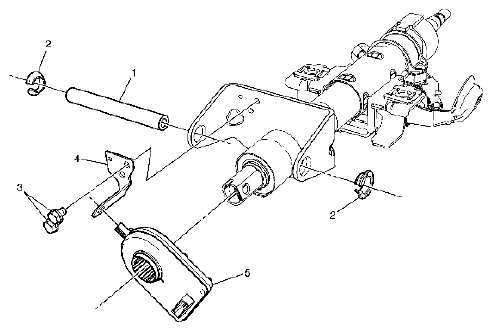

Fig 1: Identifying Steering Wheel Position Sensor Components

Courtesy of SUZUKI OF AMERICA CORP.

CALLOUT COMPONENT NAME

Callout	Component Name
Preliminary Procedure  Remove the steering column. Refer to STEERING COLUMN REPLACEMENT .
1	Metal Collar Rake Pivot
2	Plastic Bushings (Qty: 2) Tip:  During installation, use NEW bushings.
3	Anti-Rotation Bracket Bolts (Qty: 2) CAUTION: Refer to FASTENER NOTICE . Torque  5 N.m (44 lb in)
4	Anti-Rotation Bracket
5	Steering Angle Sensor Procedure  Disconnect any electrical connectors as needed.
