Home >> Suzuki >> 2007 >> XL7 Base, AWD >> Repair and Diagnosis >> Engine Performance >> Mode 6 - 2001-2007 >> 2006

Mode 6 - 2001-2007: 2006

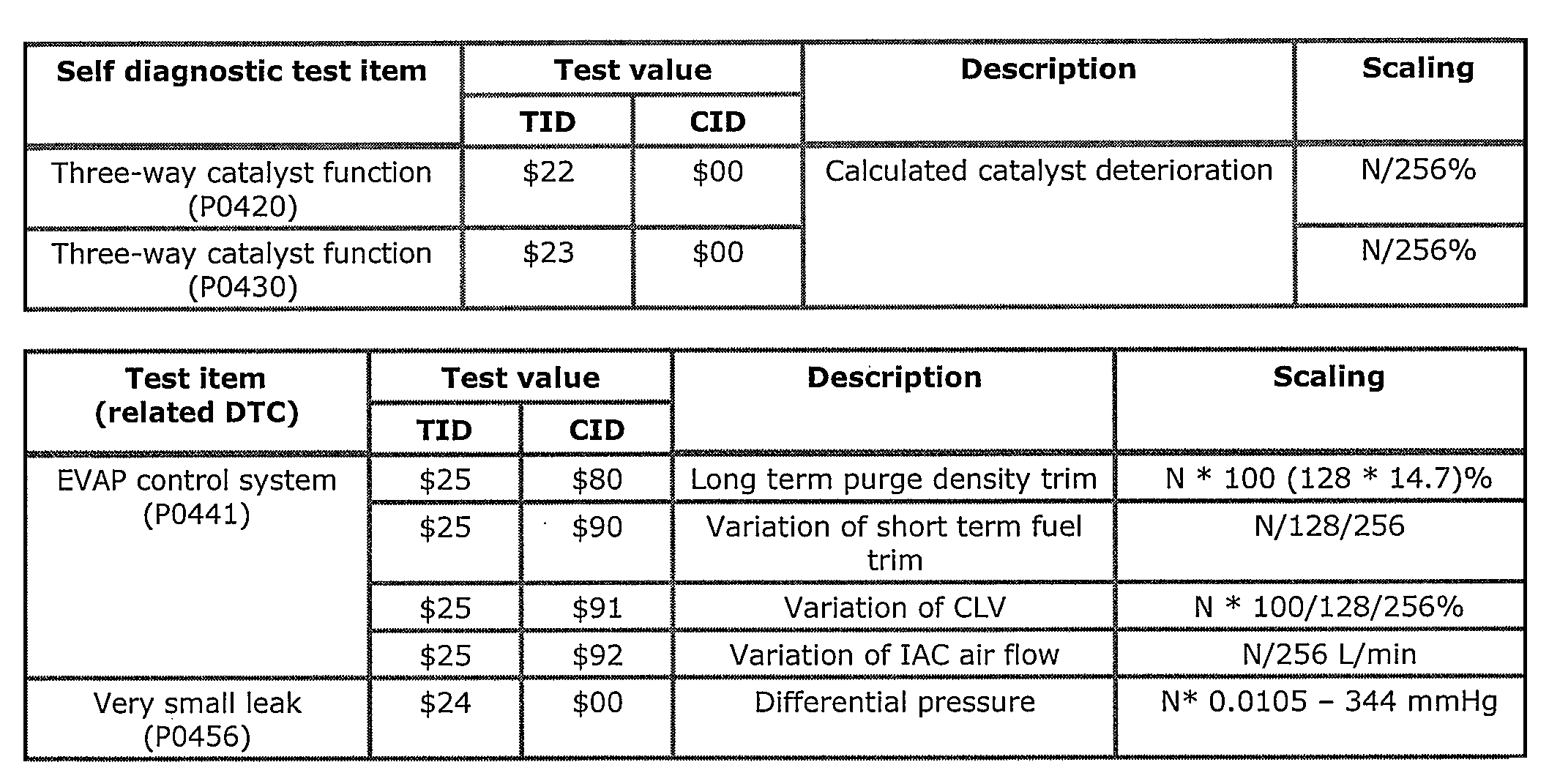

Fig 1: Mode $06 Data For '06 XL-7 (1 Of 3)
G00453040Courtesy of SUZUKI OF AMERICA CORP.

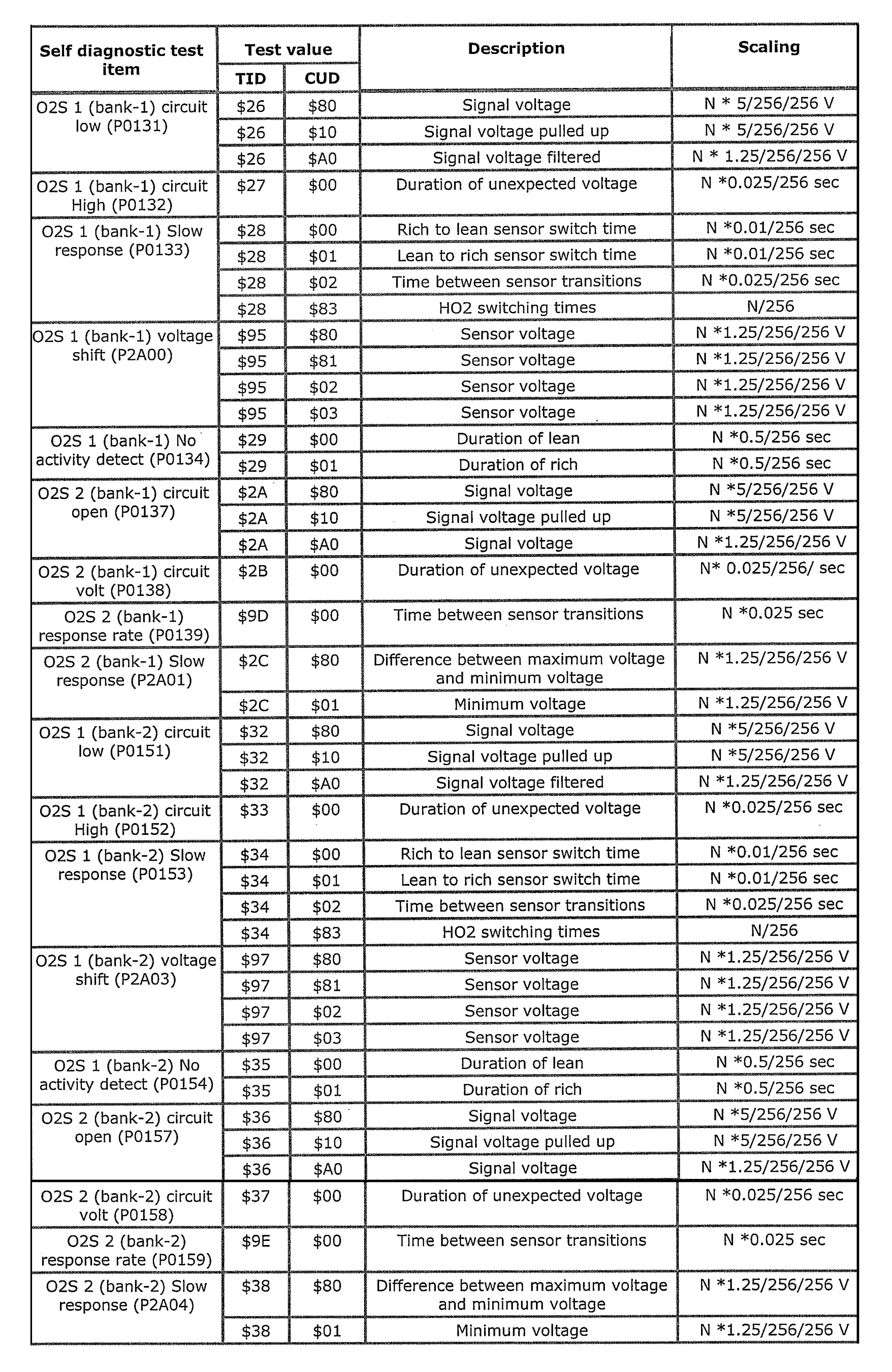

Fig 2: Mode $06 Data For '06 XL-7 (2 Of 3)
G00453041Courtesy of SUZUKI OF AMERICA CORP.

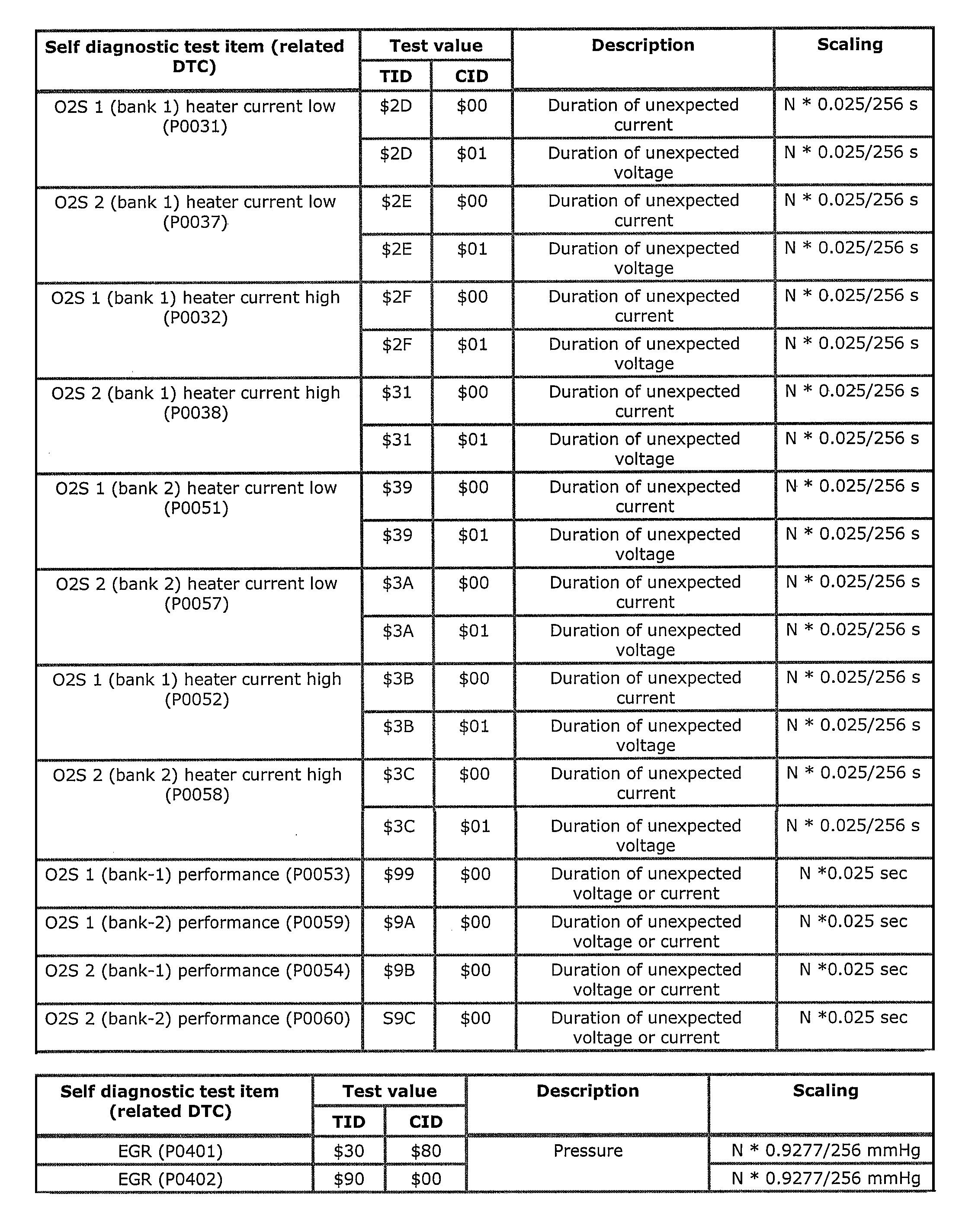

Fig 3: Mode $06 Data For '06 XL-7 (3 Of 3)
G00453042Courtesy of SUZUKI OF AMERICA CORP.
