Home >> Suzuki >> 2007 >> XL7 Base, AWD >> Repair and Diagnosis >> Engine Performance >> Mode 6 - 2001-2007 >> 2002

Mode 6 - 2001-2007: 2002

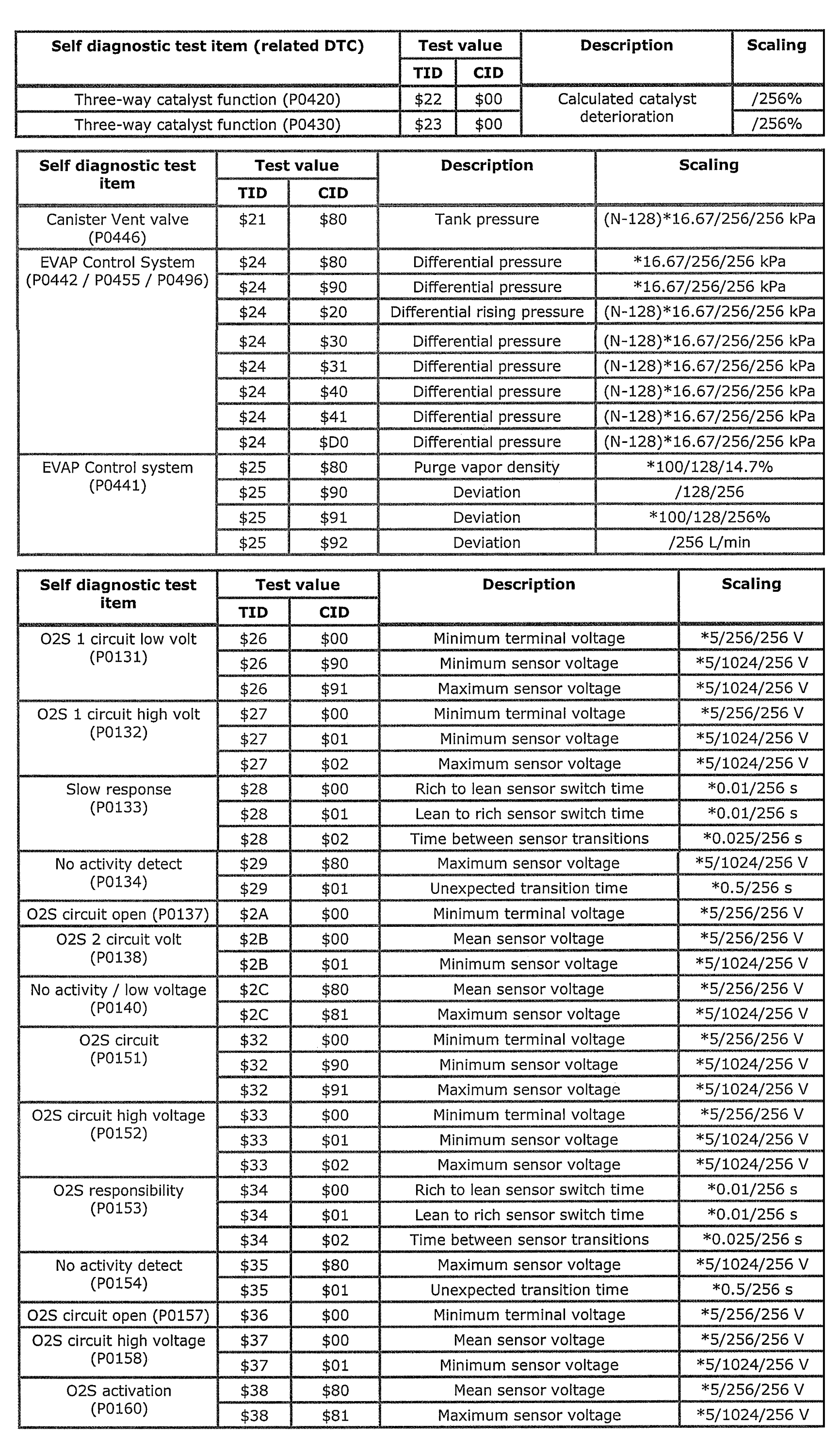

Fig 1: Mode $06 Data For '02 XL-7 (1 Of 2)

G00453070

Courtesy of SUZUKI OF AMERICA CORP.

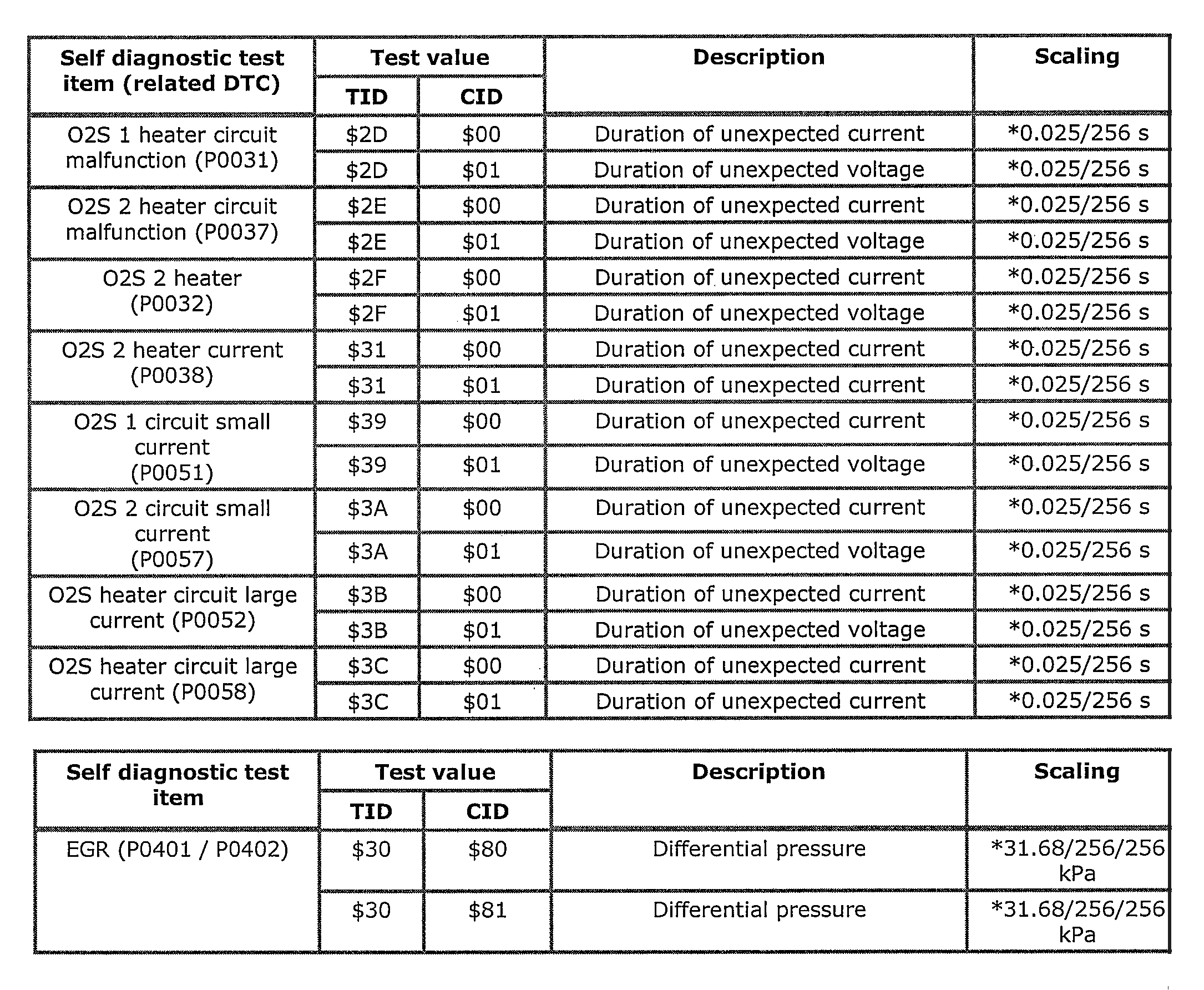

Fig 2: Mode $06 Data For '02 XL-7 (2 Of 2)

G00453071

Courtesy of SUZUKI OF AMERICA CORP.
