Mode 6 - 2001-2007: 2001

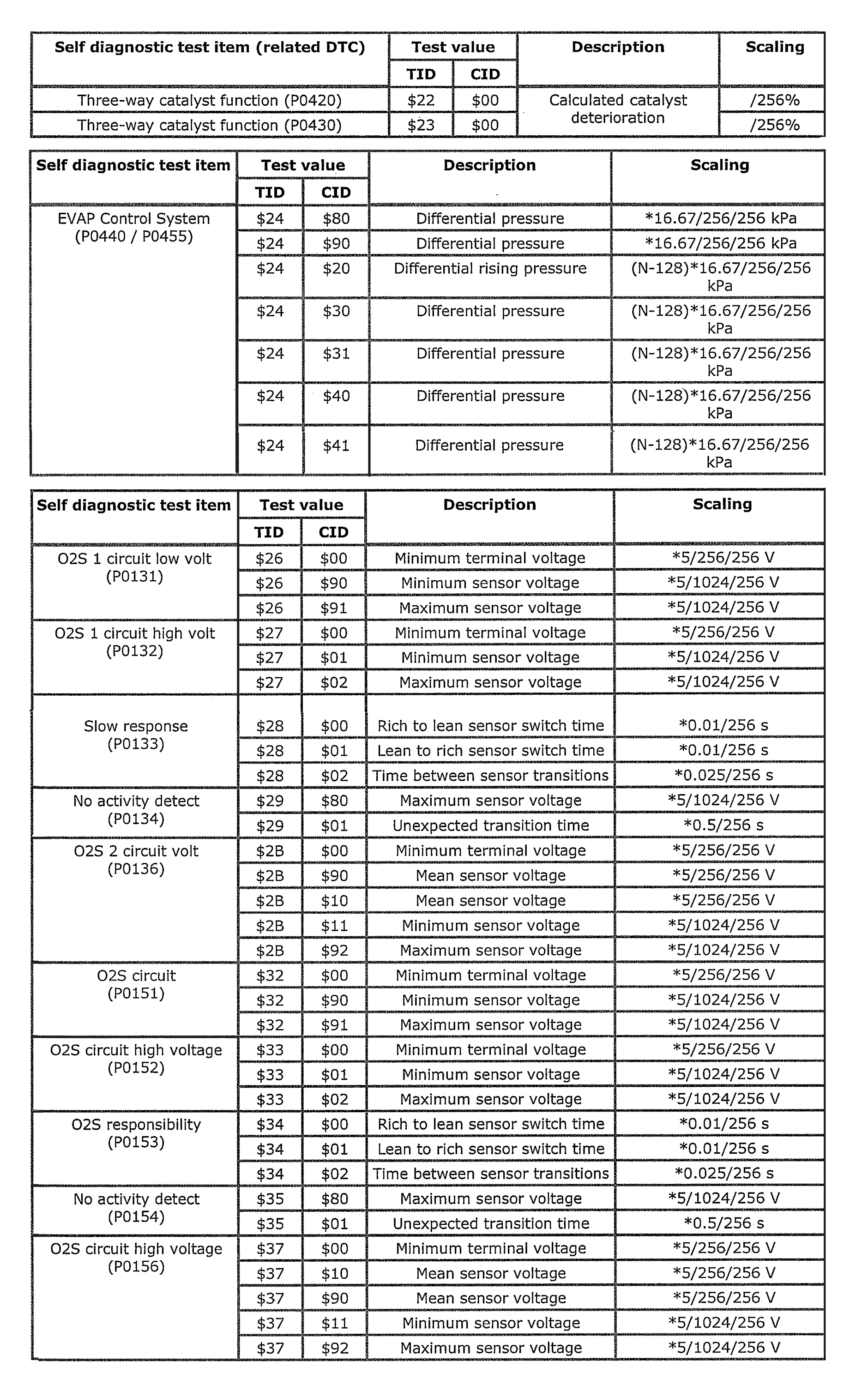

Fig 1: Mode $06 Data For '01 XL-7 (1 Of 2)

G00453068

Courtesy of SUZUKI OF AMERICA CORP.

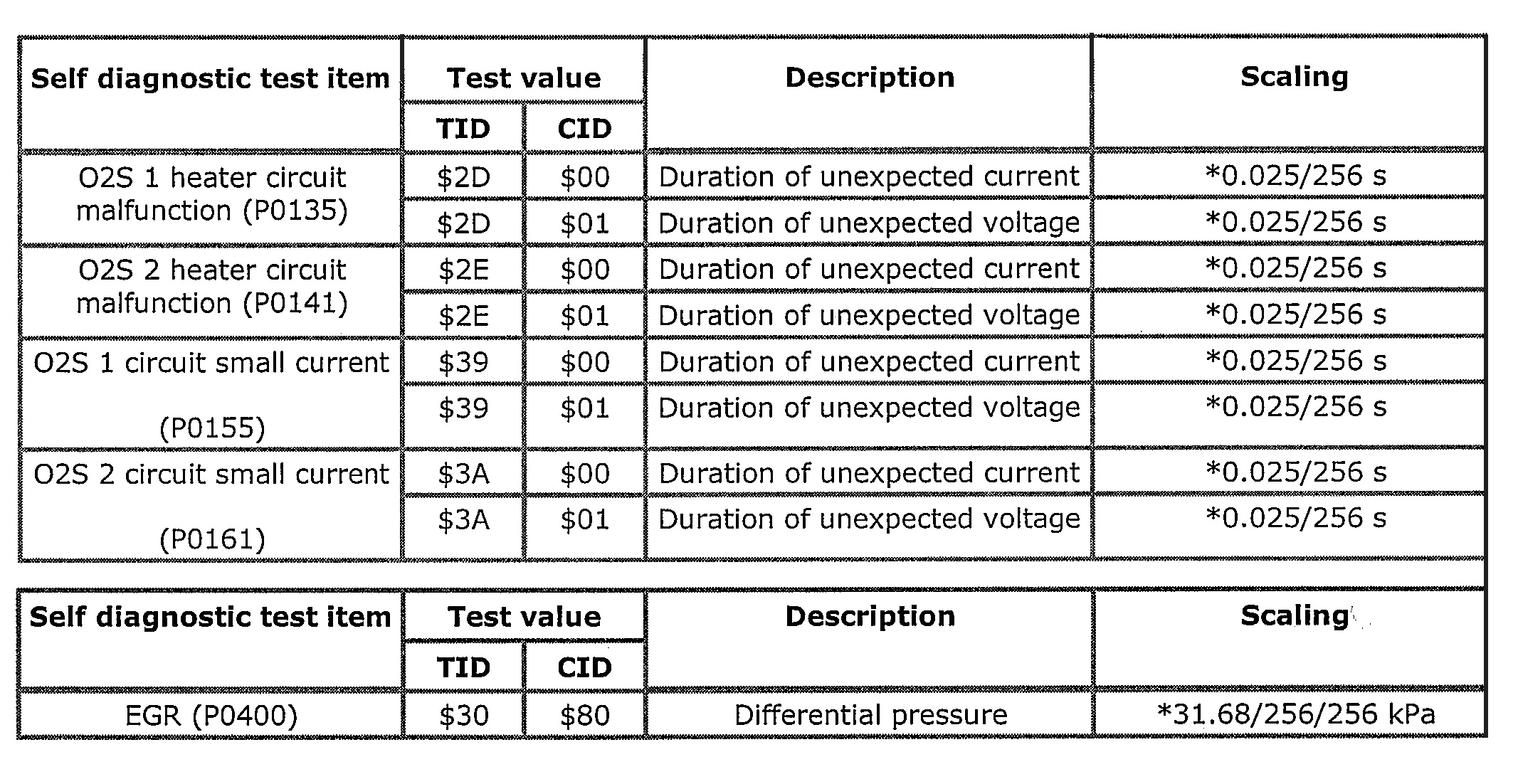

Fig 2: Mode $06 Data For '01 XL-7 (2 Of 2)

G00453069

Courtesy of SUZUKI OF AMERICA CORP.
