Engine Controls Schematics

NOTE: For additional wiring diagrams, see WIRING DIAGRAMS in ELECTRICAL section.

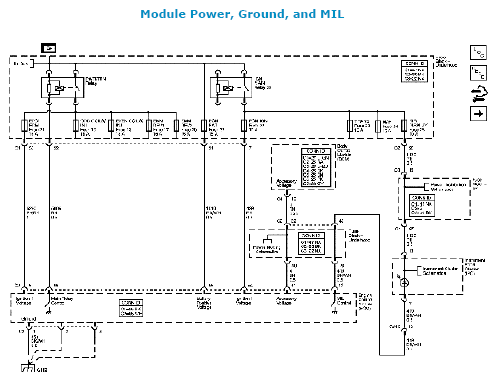

Fig 1: Identifying Module Power, Ground & MIL - Schematics

Courtesy of SUZUKI OF AMERICA CORP.

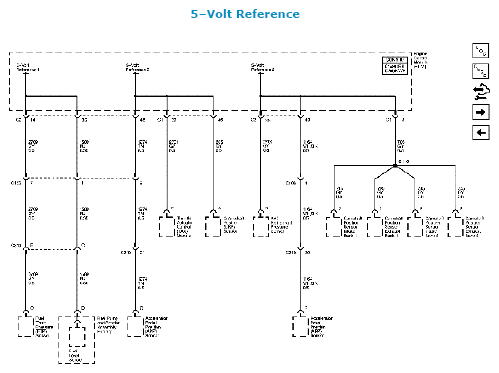

Fig 2: Identifying 5-Volt Reference - Schematics

Courtesy of SUZUKI OF AMERICA CORP.

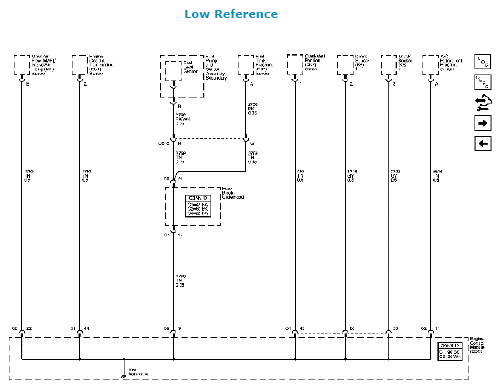

Fig 3: Identifying Low Reference - Schematics

Courtesy of SUZUKI OF AMERICA CORP.

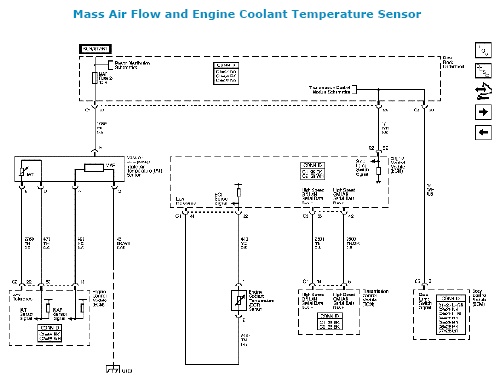

Fig 4: Identifying Mass Air Flow & Engine Coolant Temperature Sensor - Schematics

Courtesy of SUZUKI OF AMERICA CORP.

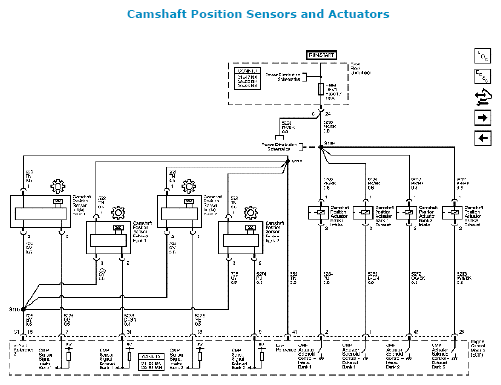

Fig 5: Identifying Camshaft Position Sensors & Actuators - Schematics

Courtesy of SUZUKI OF AMERICA CORP.

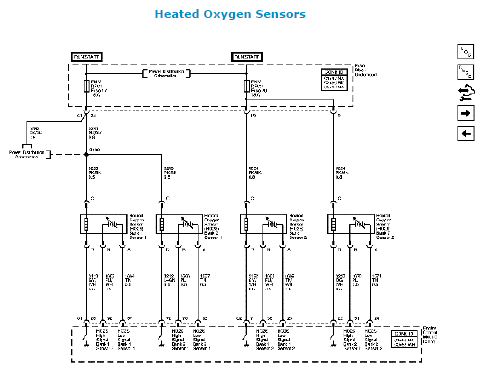

Fig 6: Identifying Heated Oxygen Sensor - Schematics

Courtesy of SUZUKI OF AMERICA CORP.

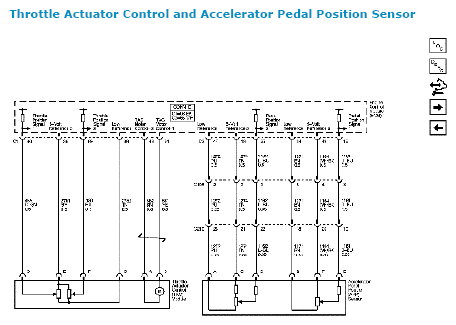

Fig 7: Identifying Throttle Actuator Control And Accelerator Pedal Position Sensor - Schematics

Courtesy of SUZUKI OF AMERICA CORP.

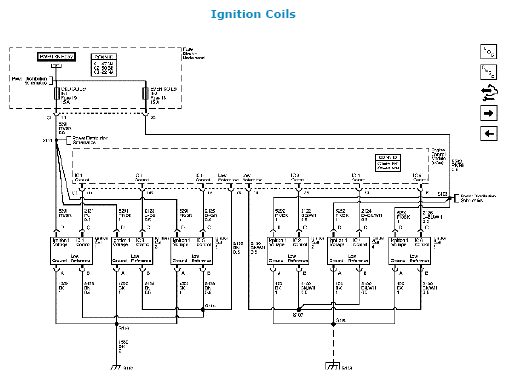

Fig 8: Identifying Ignition Coil - Schematics

Courtesy of SUZUKI OF AMERICA CORP.

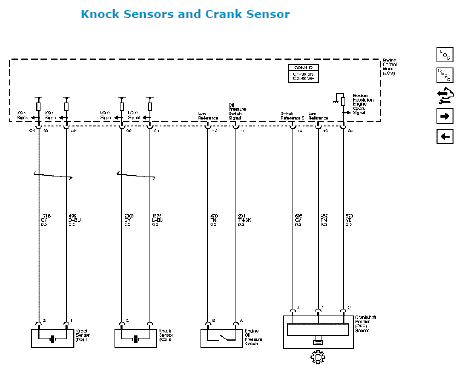

Fig 9: Identifying Knock Sensor & Crank Sensor - Schematics

Courtesy of SUZUKI OF AMERICA CORP.

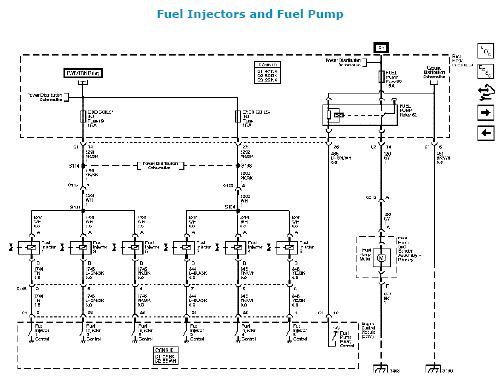

Fig 10: Identifying Fuel Injection & Fuel Pump - Schematics

Courtesy of SUZUKI OF AMERICA CORP.

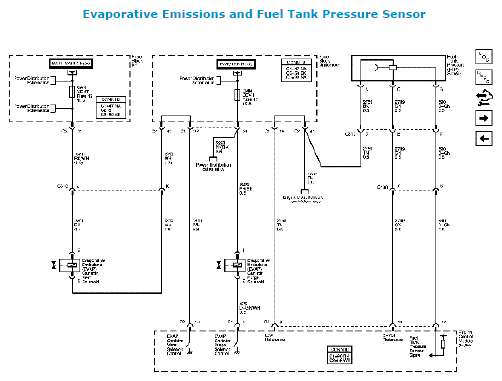

Fig 11: Identifying Evaporative Emissions & Fuel Tank Pressure Sensor - Schematics

Courtesy of SUZUKI OF AMERICA CORP.

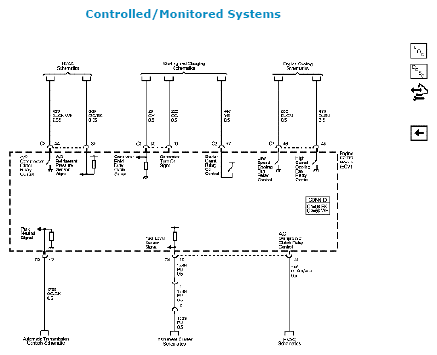

Fig 12: Identifying Controlled/Monitored System - Schematics

Courtesy of SUZUKI OF AMERICA CORP.
