Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

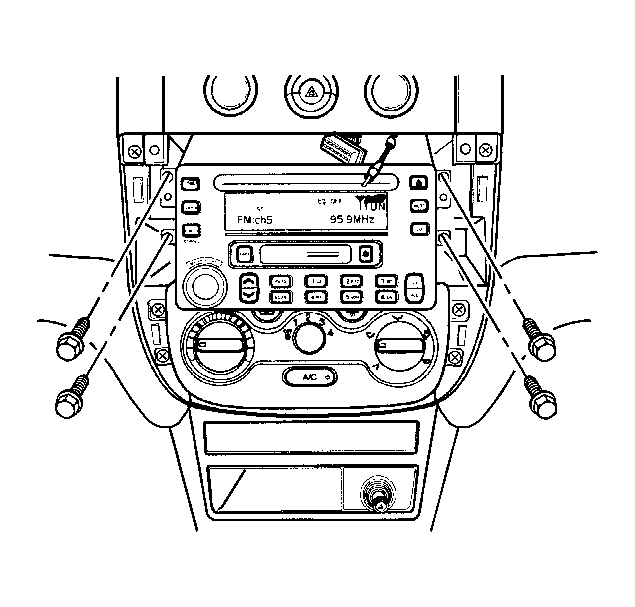

    Fig 1: View of Audio System and Screws
    GM1248466Courtesy of GENERAL MOTORS CORP.
  1. Connect the audio system electrical connector and the antenna cable.
    2. NOTE: Refer to Fastener Notice .
  2. Install the audio system with the screws.

    Tighten:  Tighten the audio system screws to 6 N.m (53 lb in).

  3. Install the I/P lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement (Hatchback) .
  4. Connect the negative battery cable.
