Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

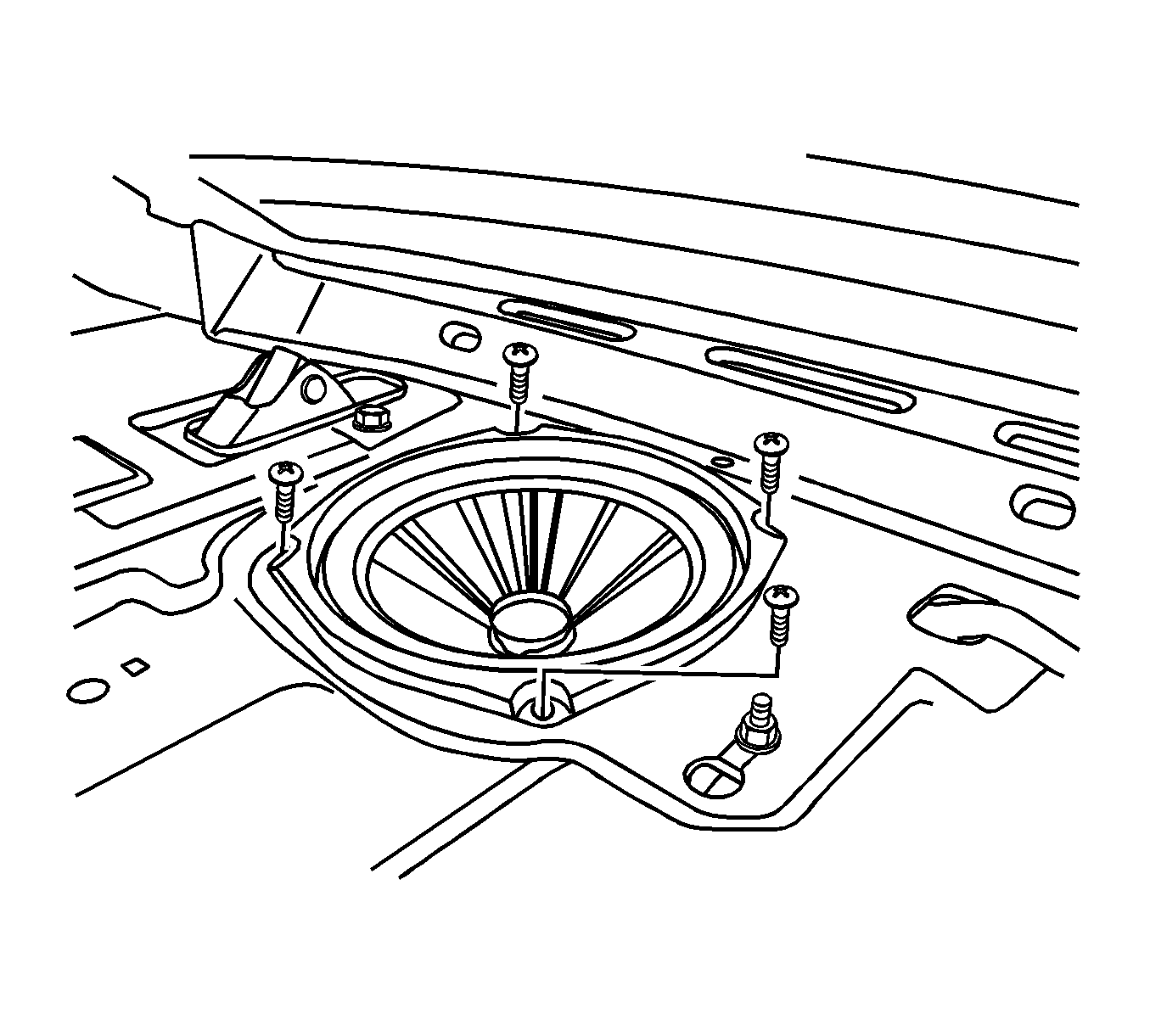

Fig 1: Rear Speaker Screws

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the rear speakers with the screws.
Tighten: Tighten the rear speaker screws to 3 N.m (27 lb in).

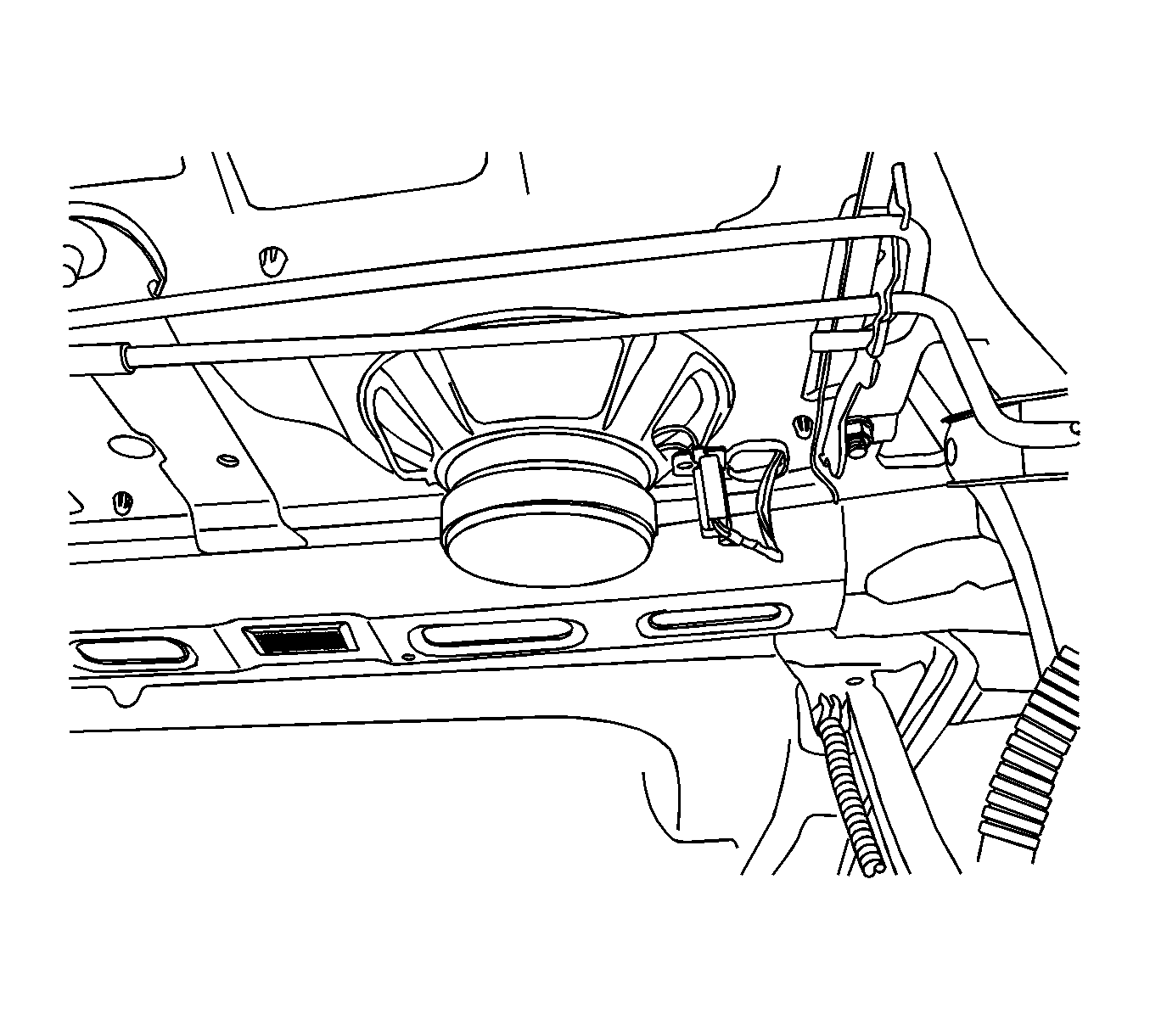

Fig 2: Rear Speaker

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector.
Install the rear window shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement .
Connect the negative battery cable.
