Remote Function Schematics (Hatchback)

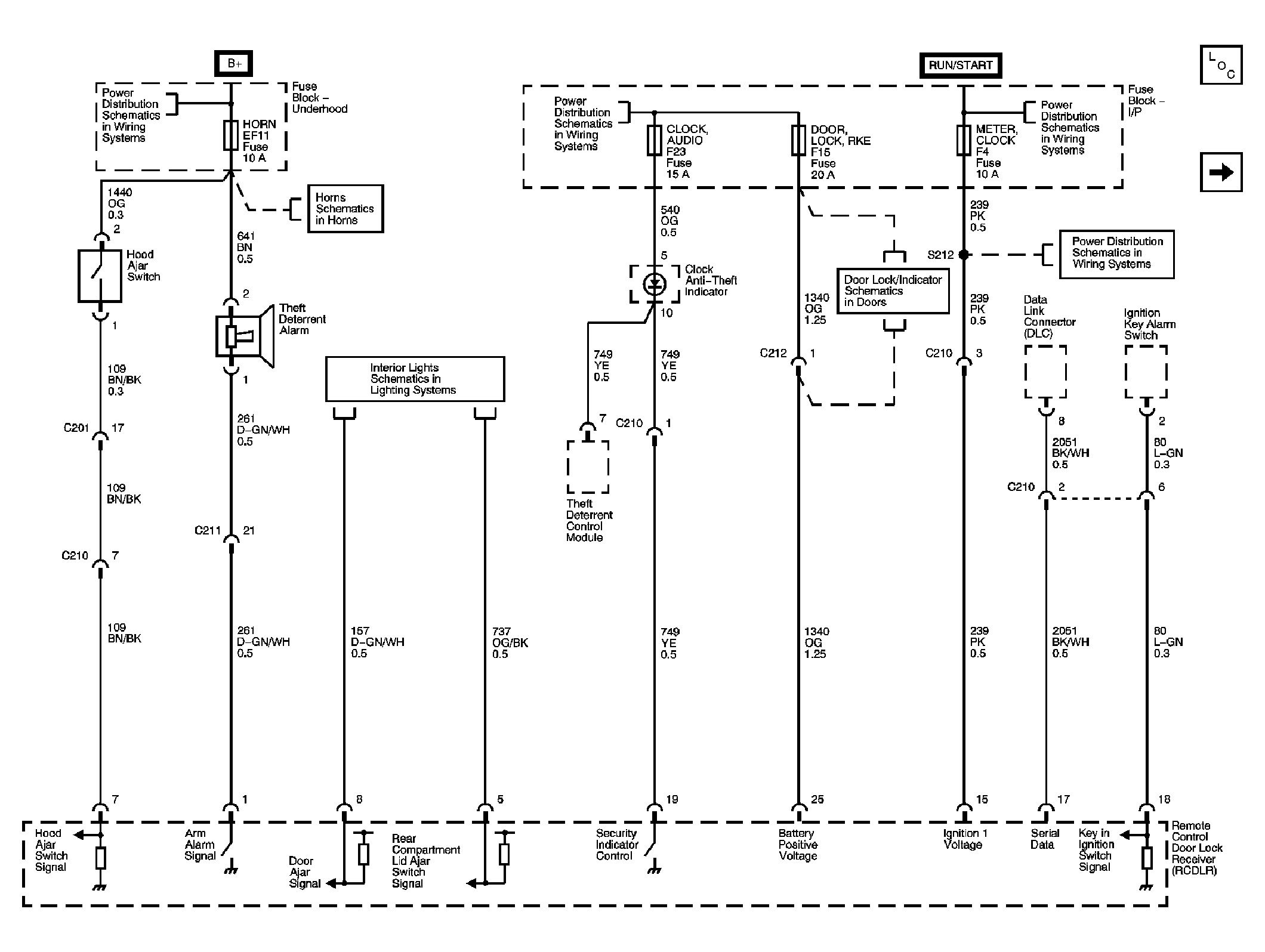

Fig 1: Theft Deterrent and RKE Power and Ground

Courtesy of GENERAL MOTORS CORP.

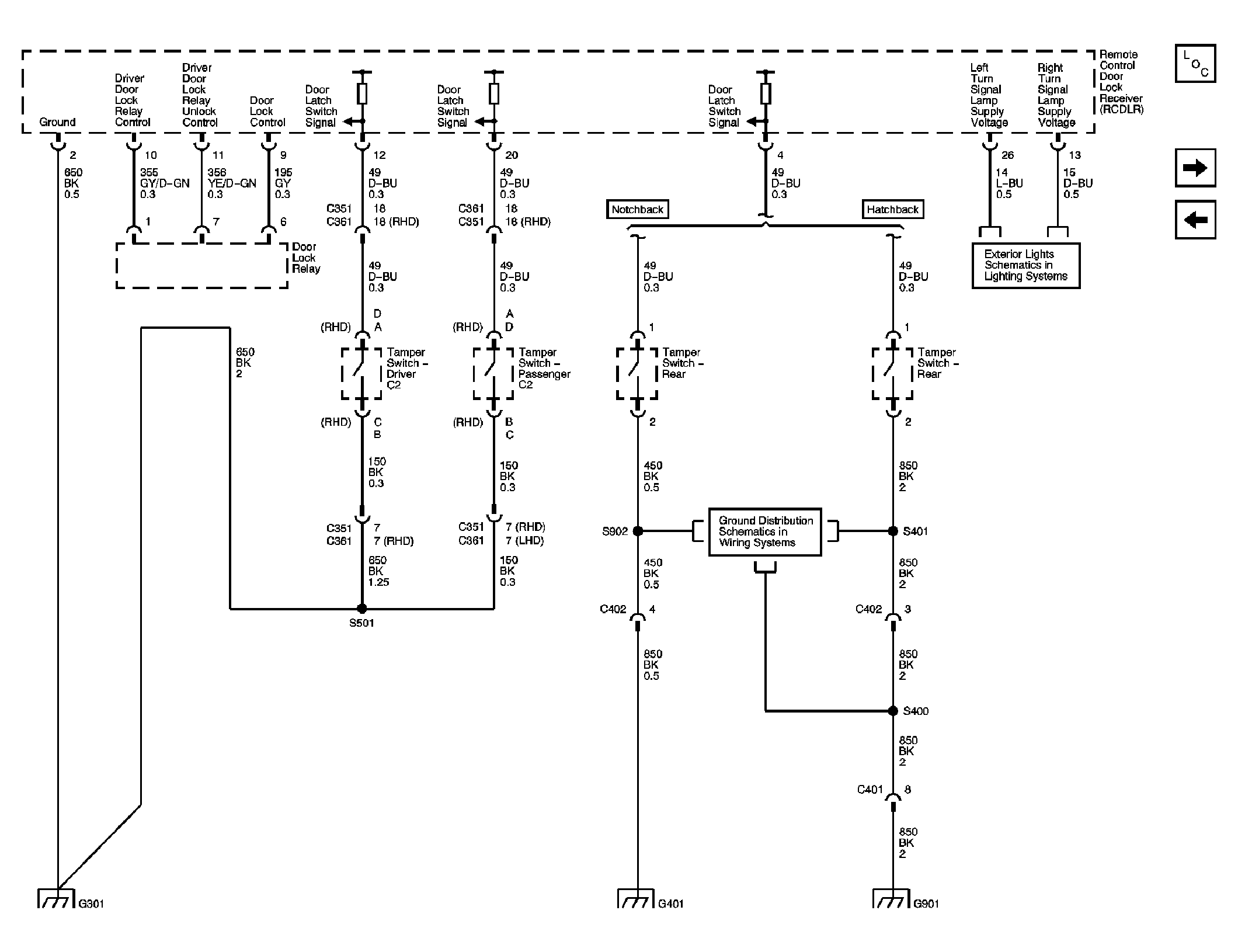

Fig 2: Door Lock Control and Tamper Switches

Courtesy of GENERAL MOTORS CORP.

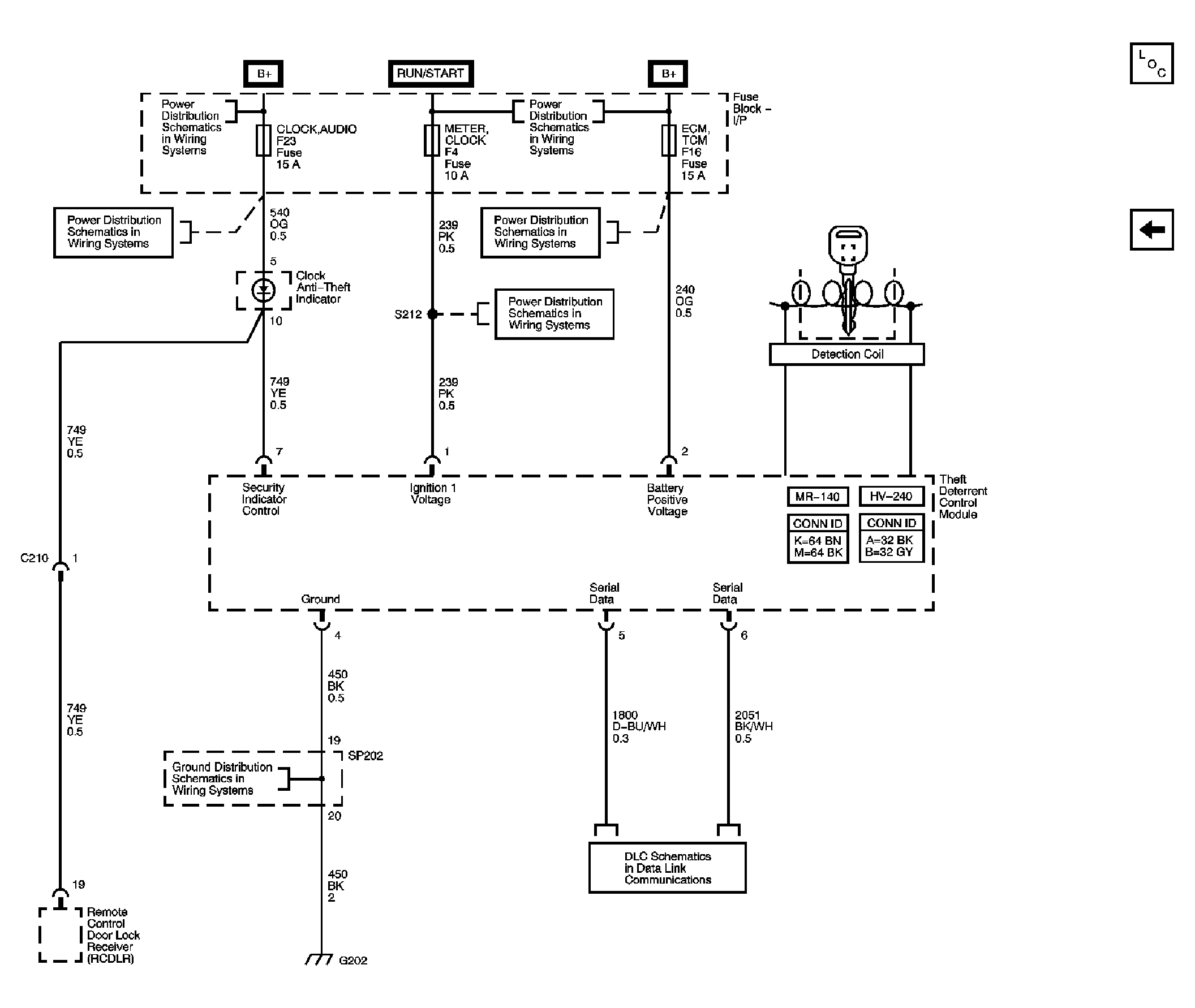

Fig 3: Vehicle Theft Deterrent (Immobilizer) Schematics

Courtesy of GENERAL MOTORS CORP.
