Installation Procedure

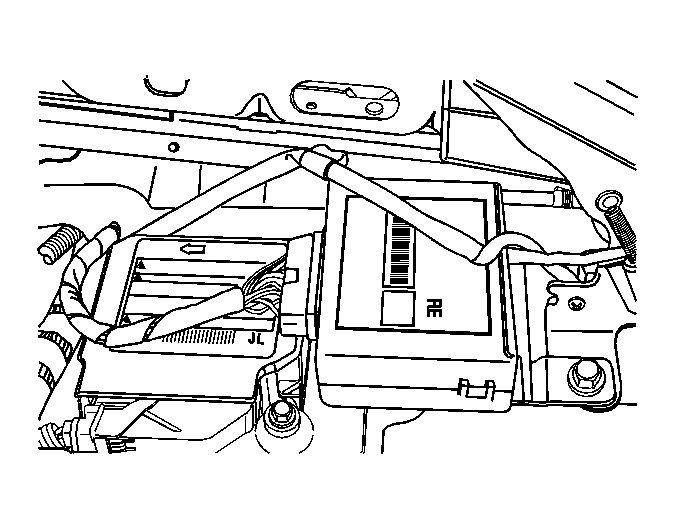

    Fig 1: View of Control Module/Receiver
    GM1252096Courtesy of GENERAL MOTORS CORP.
  1. Install the control module/receiver on its mounting bracket.
  2. Connect the control module/receiver electrical connector.
  3. Install the floor console. Refer to Front Floor Console Replacement .
  4. Connect the negative battery cable.
