Installation Procedure

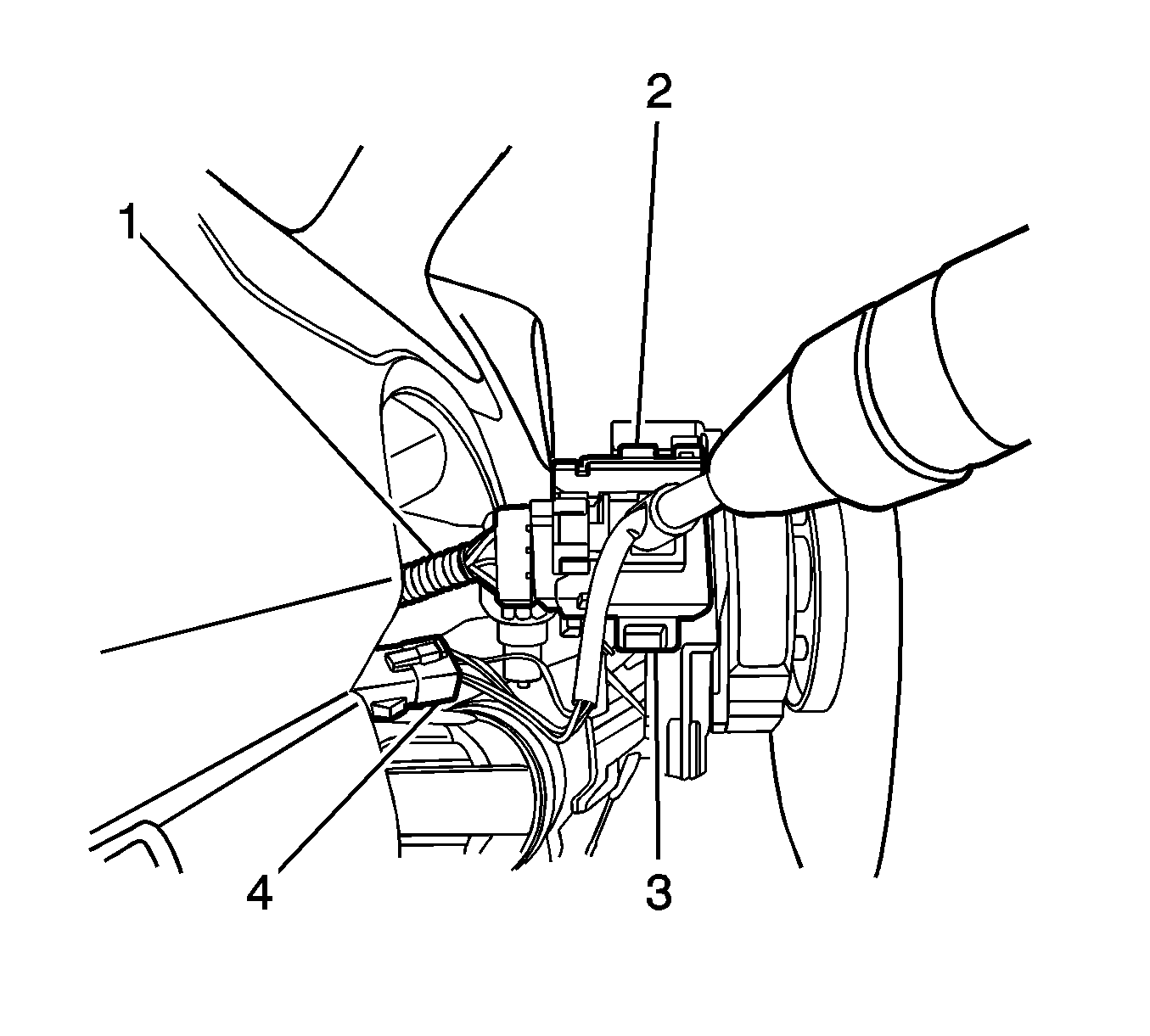

    Fig 1: Turn Signal Switch
    GM1715990Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connectors (1, 4) to the turn signal switch.
  2. Install the turn signal switch into the switch housing.
    3. NOTE: Refer to Fastener Notice .

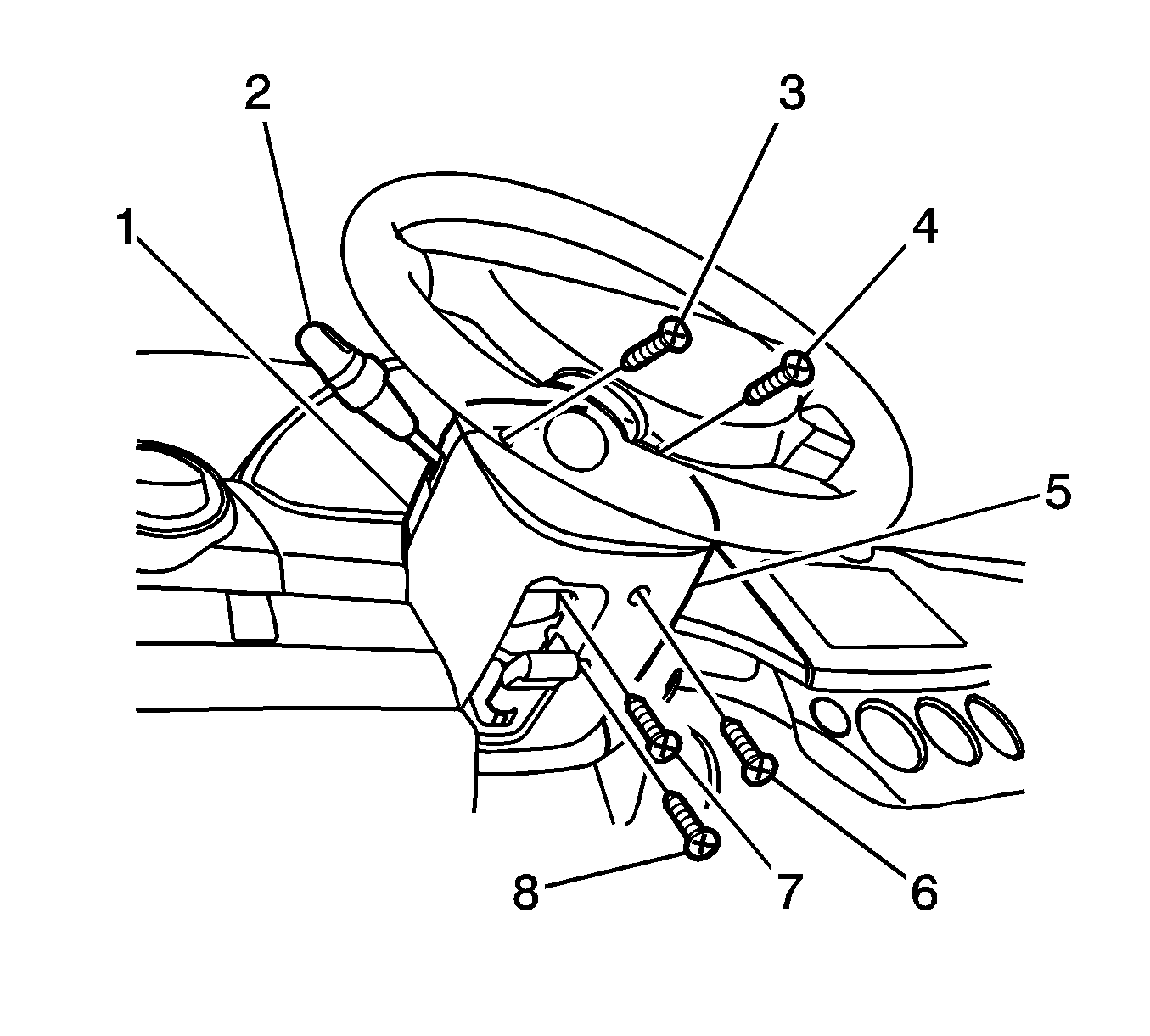

    Fig 2: Steering Column Panels
    GM1715979Courtesy of GENERAL MOTORS CORP.
  3. Install the lower steering column cover panel (5). Install the lower steering column cover panel screws (6, 7, 8).
  4. Install the upper steering column cover panel (1) and the screws (3, 4).
  5. Connect the negative battery cable.
