Headlamp Switch Connector End View

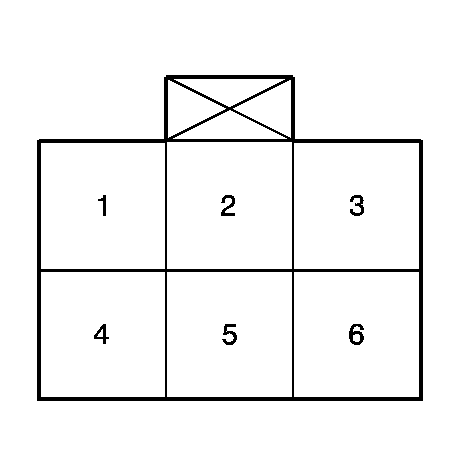

Headlamp Switch Connector End View/Part Information/Terminal Identification

GM1258011Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 650887
  • 6-Way F 250 Series (BK)
Pin Wire Color Circuit No. Function
1 BN/WH - Park Lamp Feed
2 BK/WH - Headlamp Control
3 BK/WH - Ground
4 - - -
5 D-GN/WH - Front Fog Relay Control
6 L-BU - Park Lamps Control
