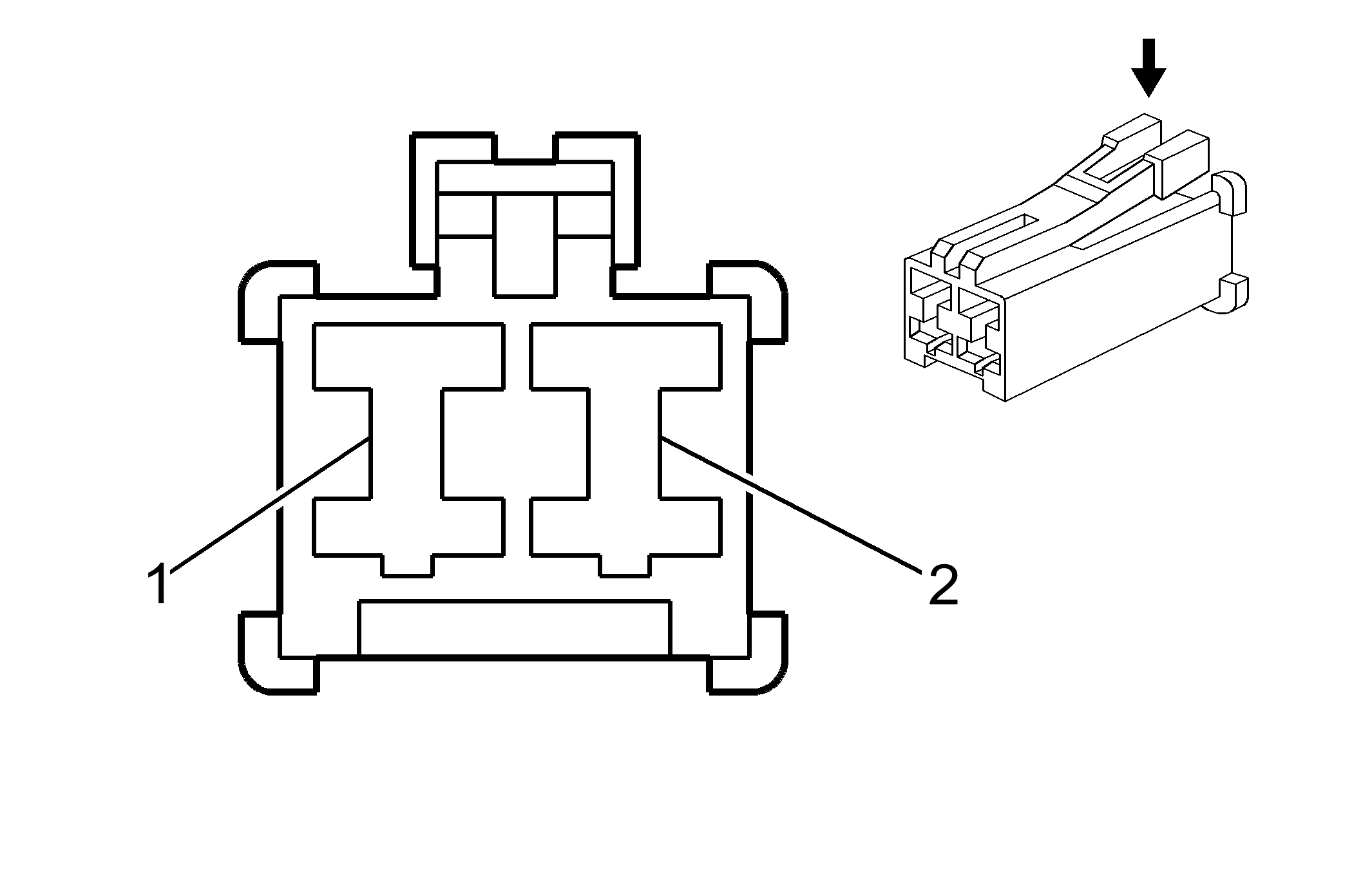

Courtesy/Reading Lamp Connector End View
Courtesy/Reading Lamp Connector End View/Part Information/Terminal Identification (w/o Sunroof)
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- KET MG 610489
- 2-Way F 090 (2.3 mm) Series
|
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
GY |
- |
Courtesy Lamp Control |
| 2 |
RD/WH |
- |
Ignition 3 Voltage |
