Removal ProcedureInstallation Procedure

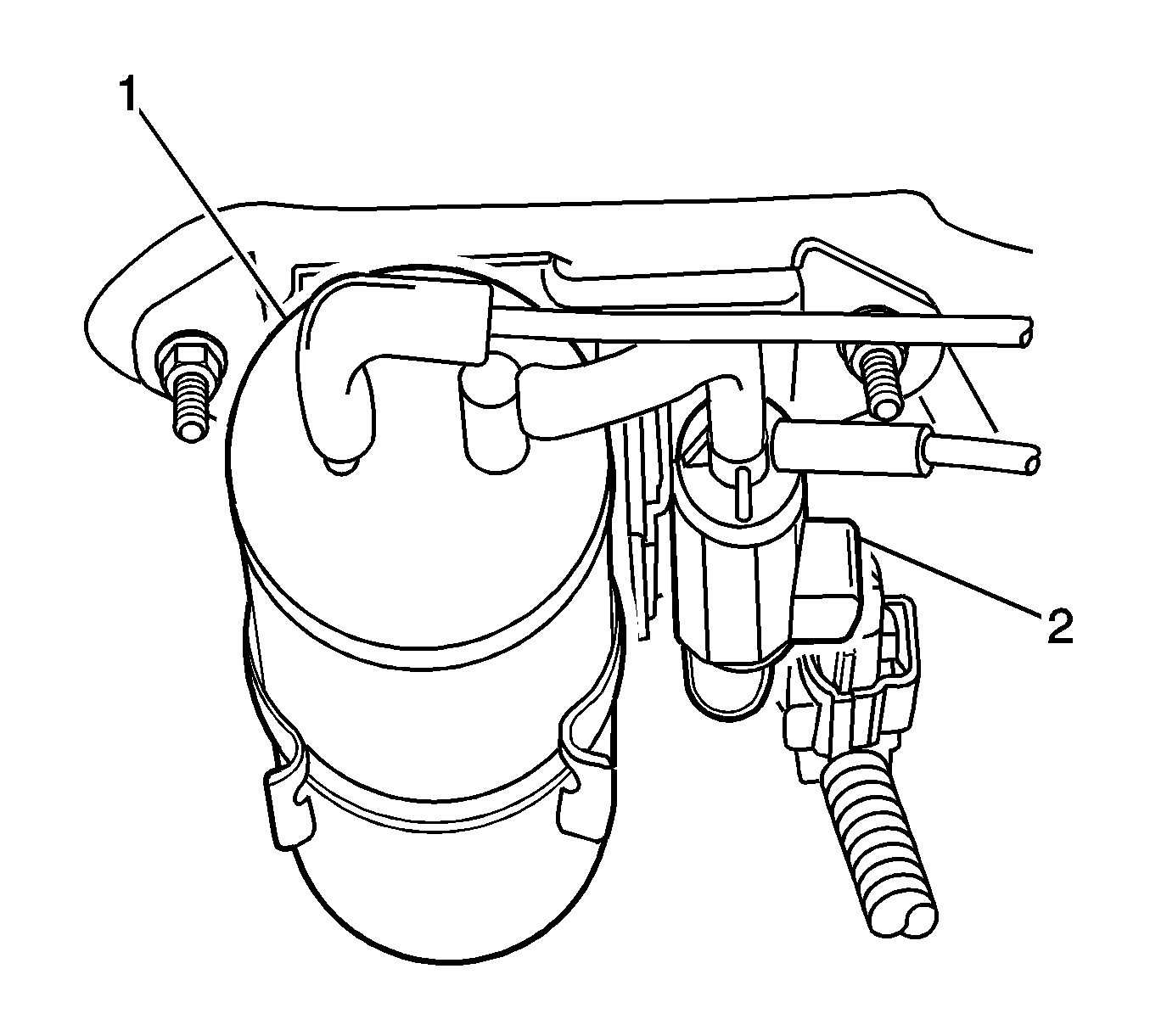

    Fig 1: Identifying Intake Manifold Tuning Valve Solenoid
    GM1464836Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the negative battery cable.
  2. Disconnect the intake manifold tuning (IMT) valve solenoid (2) connector.
  3. Disconnect the vacuum hoses from the IMT valve solenoid (2).
  4. Remove the IMT valve solenoid (2).
