Removal ProcedureInstallation Procedure

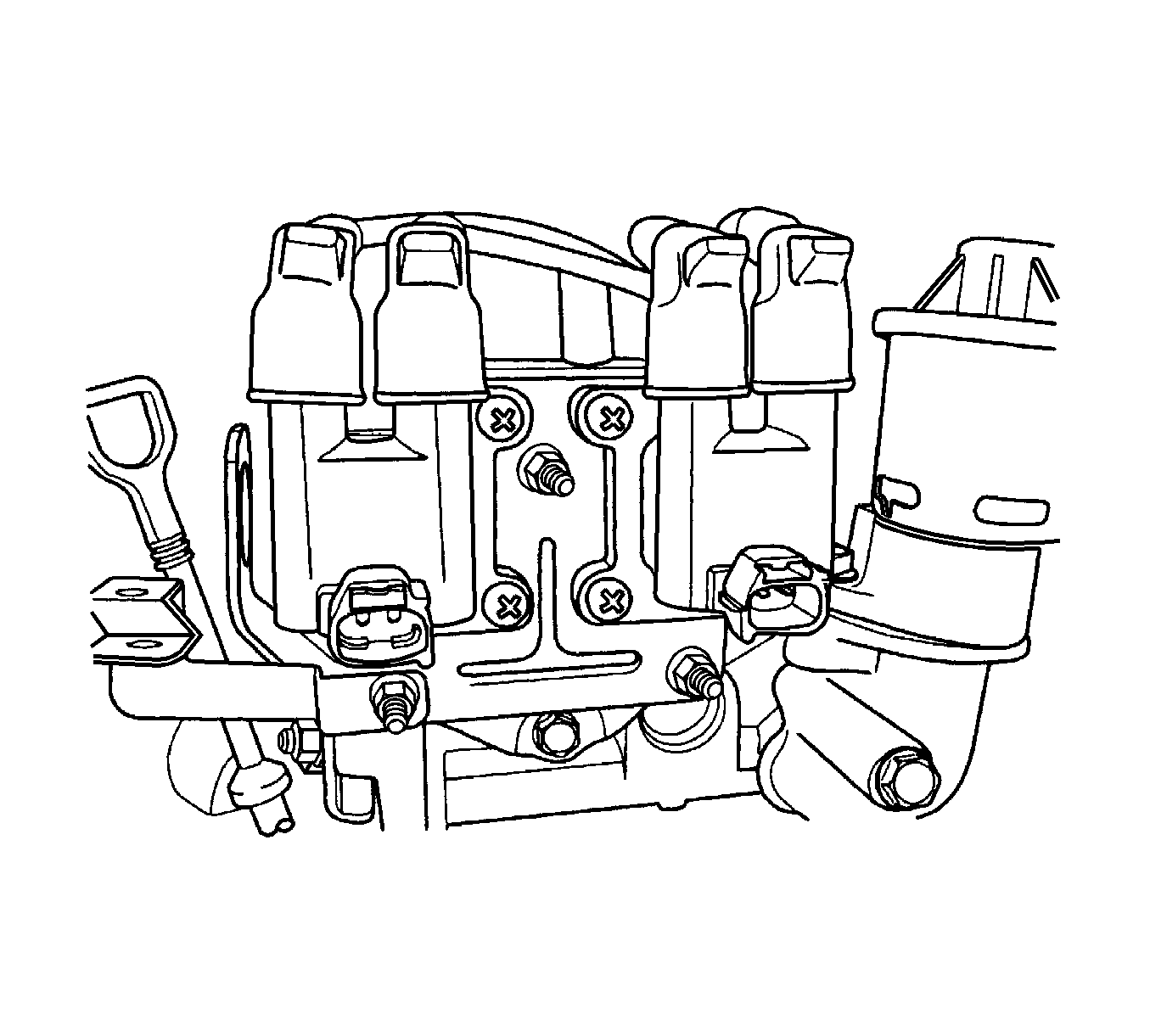

    Fig 1: View of EI System Ignition Coil
    GM1289500Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the negative battery cable.
  2. Disconnect the electronic ignition (EI) system ignition coil connector.
  3. Note the ignition wire location and remove the ignition wire.
  4. Remove the EI system ignition coil retaining nuts.
  5. Remove the EI system ignition coil.
