Window Switch Connector End View

Window Switch Connector End View/Part Information/Terminal Identification - Master (Front Power Windows)

GM1467119Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 612231
  • 8-Way F
Pin Wire Color Circuit No. Function
1 D-BU - Power Window Master Switch Driver Down Signal
2 - - Not Used
3 BN - Power Window Master Switch Passenger Down Signal
4 - - Not Used
5 L-GN/BK - Battery Positive Voltage
6 BN - Power Window Master Switch Driver Up Signal
7 D-GN - Power Window Master Switch Passenger Up Signal
8 BK - Ground
Window Switch Connector End View/Part Information/Terminal Identification - Master (Front and Rear Power Windows)

GM1479836Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 612240
  • 14-Way F Device Power Window S/W Hsg
Pin Wire Color Circuit No. Function
1 PU - Power Window Master Switch Right Rear Up Signal
2 - - Not Used
3 L-BU - Power Window Master Switch Right Rear Up Signal
4 PU - Power Window Master Switch Left Rear Up Signal
5 - - Not Used
6 D-GN - Power Window Master Switch Left Rear Down Signal
7 BN - Power Window Master Switch Passenger Up Signal
8 BK - Ground
9 L-BU - Power Window Master Switch Passenger Down Signal
10 D-BU - Power Window Master Switch Lockout Control
11 - - Not Used
12 BN - Power Window Master Switch Driver Up Signal
13 L-GN/D-BU - Ignition 3 Voltage
14 D-BU - Power Window Master Switch Driver Down Signal
Window Switch Connector End View/Part Information/Terminal Identification - Master (Front and Rear Power Windows w/Safety Function)

GM1479836Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 612240
  • 14-Way F Device Power Window S/W Hsg
Pin Wire Color Circuit No. Function
1 D-BU - Power Window Master Switch Driver Down Signal
2 BN - Power Window Master Switch Driver Auto Down Signal
3 L-GN/BK - Battery Positive Voltage
4 BN - Power Window Master Switch Passenger Up Signal (RHD)
L-BU - Power Window Master Switch Passenger Down Signal (LHD)
5 L-GN/BK - Power Window Master Switch Driver Auto Up Signal
6 D-BU - Power Window Master Switch Lockout Control (RHD)
BN - Power Window Master Switch Passenger Up Signal (LHD)
7 L-BU - Power Window Master Switch Passenger Down Signal (RHD)
D-BU - Power Window Master Switch Lockout Control (LHD)
8 D-GN - Power Window Master Switch Left Rear Down Signal
9 L-GN/BK - Power Window Master Switch Driver Auto Up Signal
10 L-GN/BU - Battery Positive Voltage
11 BK - Ground
12 PU - Power Window Master Switch Left Rear Up Signal
13 L-BU - Power Window Master Switch Right Rear Down Signal
14 PU - Power Window Master Switch Right Rear Up Signal
Window Switch Connector End View/Part Information/Terminal Identification - Passenger (Front Power Windows)

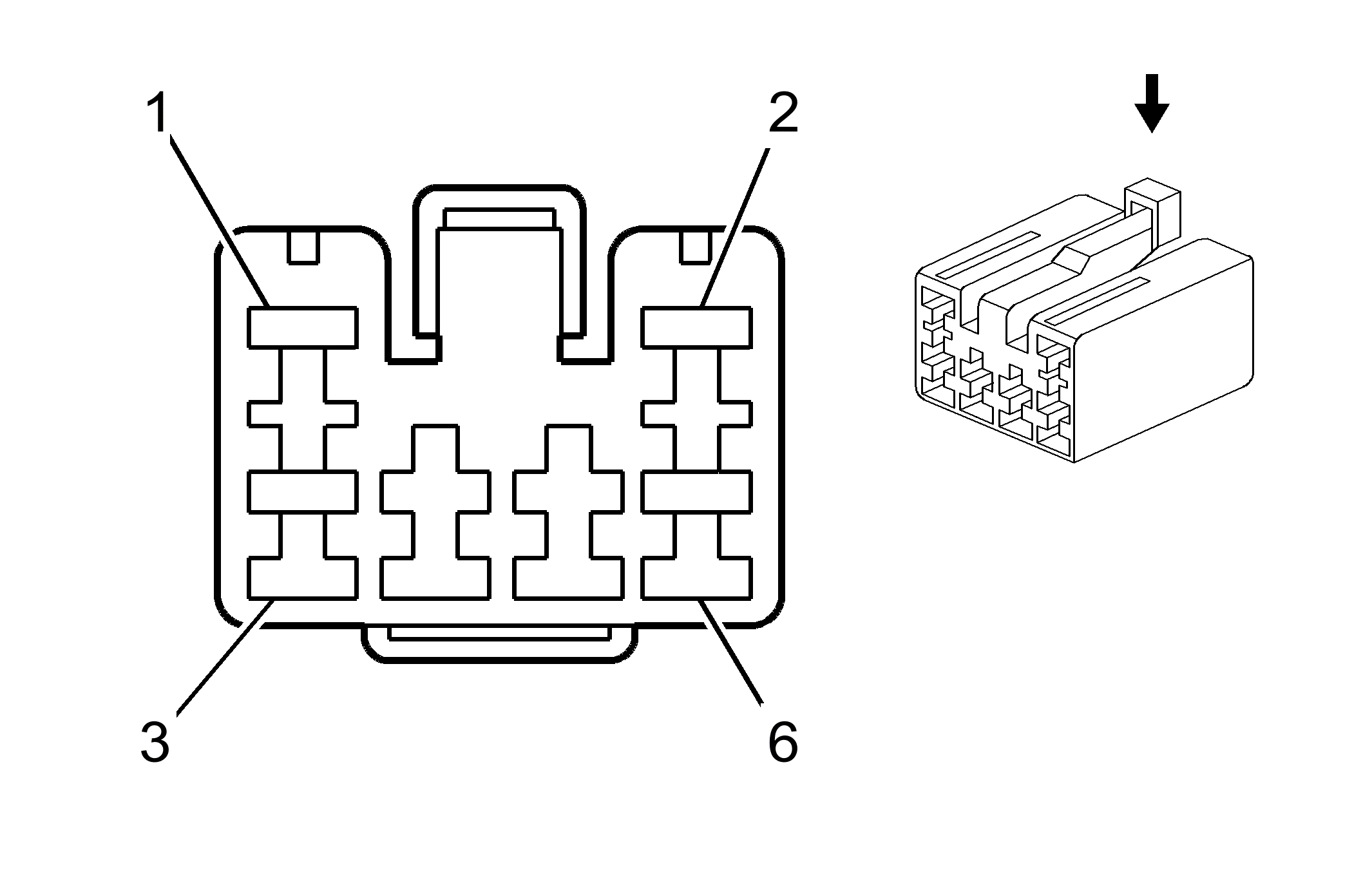

GM1467021Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610152
  • 6-Way F 090 (2.3 mm) Series (WH)
Pin Wire Color Circuit No. Function
1 D-GN - Power Window Switch Passenger Up Signal
2 BN - Power Window Switch Passenger Down Signal
3 D-BU - Power Window Motor Passenger Up Control
4 L-GN/BN - Battery Positive Voltage
5 - - Not Used
6 BN - Power Window Motor Passenger Up Control
Window Switch Connector End View/Part Information/Terminal Identification - Passenger (Front and Rear Power Windows)

GM1467021Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610152
  • 6-Way F 090 (2.3 mm) Series (WH)
Pin Wire Color Circuit No. Function
1 L-BU - Power Window Switch Passenger Down Signal
2 BN - Power Window Switch Passenger Up Signal
3 D-GN/WH - Power Window Motor Passenger Down Control
4 BN/OG - Power Window Master Switch Lockout Control
5 - - Not Used
6 BN/BK - Power Window Motor Passenger Up Control
Window Switch Connector End View/Part Information/Terminal Identification - Passenger (Front and Rear Power Windows w/Safety Function)

GM1467021Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610152
  • 6-Way F 090 (2.3 mm) Series (WH)
Pin Wire Color Circuit No. Function
1 L-BU - Power Window Switch Passenger Down Signal
2 BN - Power Window Switch Passenger Up Signal
3 BU - Power Window Motor Passenger Down Control
4 BN/OG - Power Window Master Switch Lockout Control
5 - - Not Used
6 BN - Power Window Motor Passenger Up Control
Window Switch Connector End View/Part Information/Terminal Identification - Left Rear

GM1467021Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610152
  • 6-Way F 090 (2.3 mm) Series (WH)
Pin Wire Color Circuit No. Function
1 D-GN - Power Window Master Switch Left Rear Down Signal
2 PU - Power Window Master Switch Left Rear Up Signal
3 L-GN/RD - Power Window Switch Left Rear Down Control (Front and Rear Power Windows)
D-BU - Power Window Switch Left Rear Down Control (Front and Rear Power Windows w/Safety Function)
4 BN/OG - Power Window Master Switch Lockout Control
5 - - Not Used
6 GY/D-GN - Power Window Switch Left Rear Up Control (Front and Rear Power Windows)
BN - Power Window Switch Left Rear Up Control (Front and Rear Power Windows w/Safety Function)
Window Switch Connector End View/Part Information/Terminal Identification - Right Rear

GM1467021Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610152
  • 6-Way F 090 (2.3 mm) Series (WH)
Pin Wire Color Circuit No. Function
1 L-GN/BK - Power Window Master Switch Right Rear Down Signal
2 GY/OG - Power Window Master Switch Right Rear Up Signal
3 L-GN/RD - Power Window Switch Right Rear Down Control (Front and Rear Power Windows)
D-BU - Power Window Switch Right Rear Down Control (Front and Rear Power Windows w/Safety Function)
4 BN/OG - Power Window Master Switch Lockout Control
5 - - Not Used
6 GY/D-GN - Power Window Switch Right Rear Up Control (Front and Rear Power Windows )
BN - Power Window Switch Right Rear Up Control (Front and Rear Power Windows w/Safety Function)
