Installation Procedure

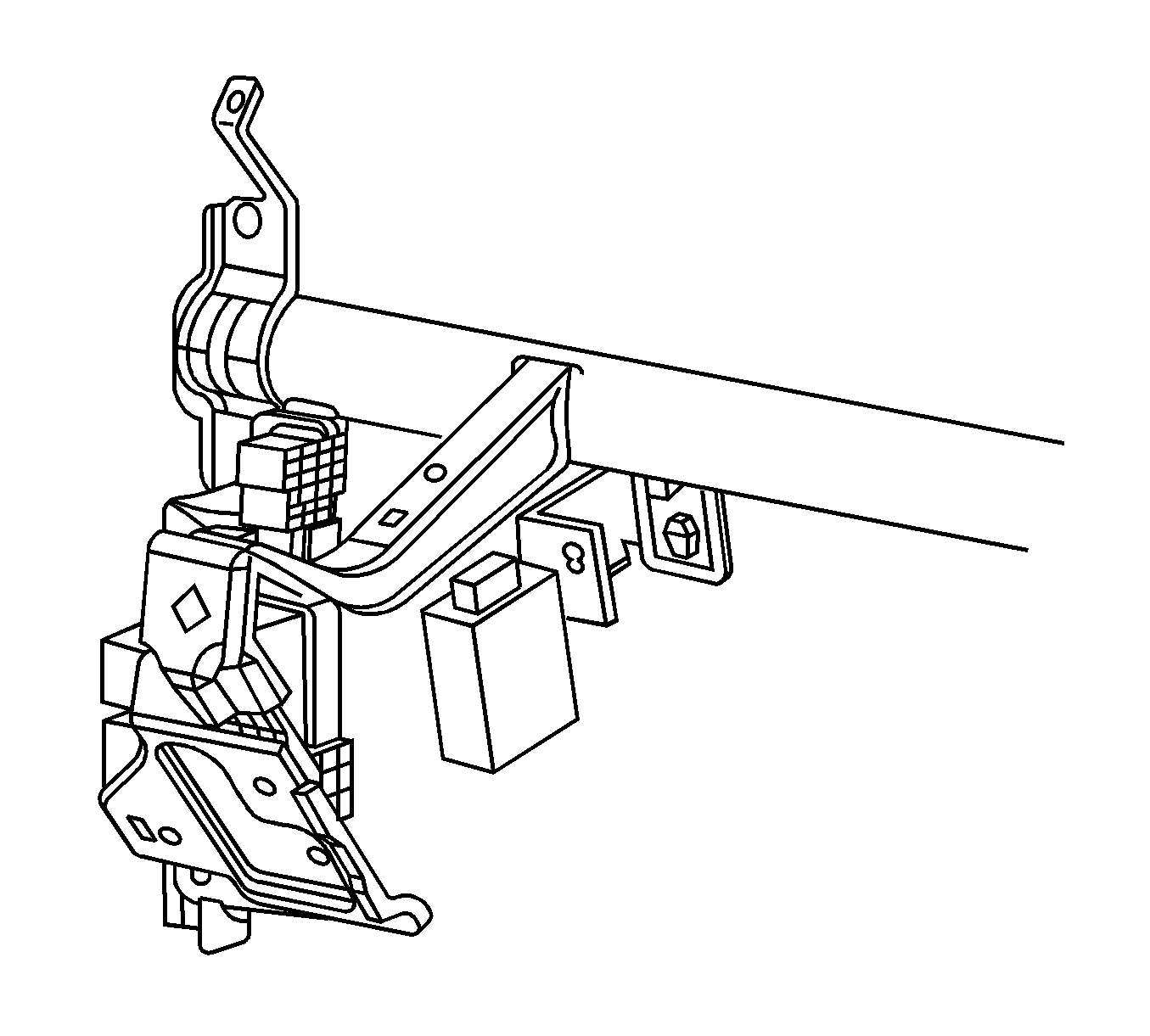

    Fig 1: View of Lamp Control Module
    GM1376092Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the lamp control module with the screws.
  2. Connect the electrical connector.
  3. Install the instrument panel low cover.
  4. Connect the negative battery cable.
